| Range Of Product |
Harmony XB5 |
| Product Or Component Type |
Push-button |
| Device Short Name |
XB5 |
| Bezel Material |
Plastic
Dark grey plastic |
| Head Type |
Standard |
| Fixing Collar Material |
Plastic |
| Mounting Diameter |
0.87 in (22 mm) |
| Sale Per Indivisible Qty |
1 |
| Shape Of Signaling Unit Head |
Round |
| Type Of Operator |
spring return |
| Operator Profile |

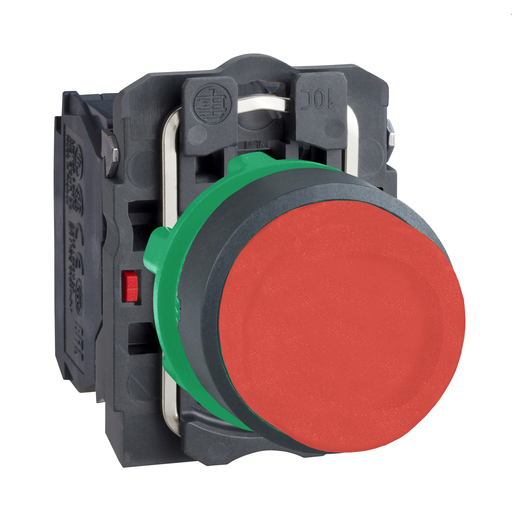

Red projecting, unmarked |
| Contacts Type And Composition |
1 NO + 1 NC |
| Contact Operation |
Slow-break |
| Connections - Terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Resistance High Press Washer |
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts Usage |
Standard contacts |
| Positive Opening |
With EN/IEC 60947-5-1 appendix K |
| Operating Travel |
0.06 in (1.5 mm) NC changing electrical state)
0.17 in (4.3 mm) total travel) |
| Operating Force |
3.5 N NC changing electrical state |
| Mechanical Durability |
10000000 cycles |
| Tightening Torque |
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head |
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm |
| Contacts Material |
Silver alloy (Ag/Ni) |
| Short-Circuit Protection |
10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage |
600 V 3)EN/IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage |
6 kV EN/IEC 60947-1 |
| Ie Rated Operational Current |
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability |
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability |
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Device Presentation |
Complete product |
| Customizable |
No |
| Compatibility Code |
XB5 |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Overvoltage Category |
Class II IEC 60536 |
| IP Degree Of Protection |
IP66 IEC 60529
IP67 IEC 60529
IP69 IEC 60529
IP69K IEC 60529 |
| Nema Degree Of Protection |
NEMA 13
NEMA 4X |
| IK Degree Of Protection |
IK03 IEC 50102 |
| Standards |
UL 508
JIS C8201-5-1
EN/IEC 60947-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
CSA C22.2 No 14
JIS C8201-1 |
| Product Certifications |
LROS (Lloyds register of shipping)
RINA
GL
UL Listed
BV
CSA
DNV |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category |
22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule |
CS2 |
| GTIN |
00785901712374 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
