| Range Of Product |
Harmony XB5 |
| Product Or Component Type |

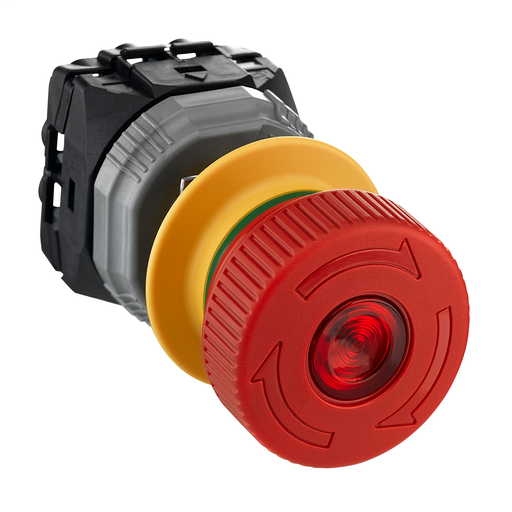

Illuminated emergency stop push-button |
| Device Short Name |
XB5 |
| Bezel Material |
Plastic |
| Fixing Collar Material |
Plastic |
| Head Type |
Standard |
| Mounting Diameter |
0.87 in (22 mm) |
| Sale Per Indivisible Qty |
1 |
| Local Signalling |
1 red LED 24 V DC7.5 mA |
| Light Source |
LED |
| Us Rated Supply Voltage |
21.6...26.4 V |
| Light Source Colour |
Red |
| Service Life In Hours |
30000 h 77 °F (25 °C) |
| Shape Of Signaling Unit Head |
Round |
| Type Of Operator |
trigger action and mechanical latching with mechanical state indicator |
| Reset |
Turn to release |
| Operator Profile |
Red mushroom Ø 40 mm, unmarked |
| Contacts Type And Composition |
1 NO + 2 NC |
| Contact Operation |
Slow-break |
| Connections - Terminals |
Screw clamp terminals, <= 1.25 mm² with cable end EN/IEC 60947-1
Screw clamp terminals, <= 1.25 mm² without cable end EN/IEC 60947-1 |
| Device Presentation |
Complete product |
| Us Rated Supply Voltage |
24 V DC 50 Hz |
| Supply Voltage Limits |
21.6…26.4 V DC |
| Height |
1.65 in (42 mm) |
| Width |
1.65 in (42 mm) |
| Depth |
3.13 in (79.5 mm) |
| Terminals Description ISO n°1 |
(21-22)NC
(11-12)NC
(13-14)NO |
| Product Weight |
0.21 lb(US) (0.094 kg) |
| Contacts Usage |
Monitoring contact |
| Positive Opening |
With EN/IEC 60947-5-1 appendix K |
| Mechanical Durability |
100000 cycles |
| Tightening Torque |
7.08…13.28 lbf.in (0.8…1.5 N.m) EN/IEC 60947-1 |
| Shape Of Screw Head |
Slotted flat Ø 5.5 mm
Cross JIS No 2
Cross Philips No 2 |
| Contacts Material |
Silver alloy - gold plated (Ag/Cu) |
| Short-Circuit Protection |
10 A cartridge fuse gG EN/IEC 60947-5 |
| Ith Cnvtl Free Air Therm Crrt |
5 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage |
250 V 2)IEC 61140 |
| Uimp Rated Imp Wstd Voltage |
2.5 kV EN/IEC 60947-1 |
| Ie Rated Operational Current |
1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1
0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Electrical Durability |
100000 cycles, AC-15, 1.5 A 240 V 1800 cyc/h 0.4 EN/IEC 60947-5-1 appendix C
100000 cycles, AC-15, 3 A 120 V 1800 cyc/h 0.4 EN/IEC 60947-5-1 appendix C
100000 cycles, DC-13, 0.1 A 250 V 1800 cyc/h 0.4 EN/IEC 60947-5-1 appendix C
100000 cycles, DC-13, 0.22 A 125 V 1800 cyc/h 0.4 EN/IEC 60947-5-1 appendix C |
| Ambient Air Temp For Storage |
-40…176 °F (-40…80 °C) |
| Ambient Air Temp For Op |
-4…122 °F (-20…50 °C) |
| Overvoltage Category |
Class II IEC 61140 |
| IP Degree Of Protection |
IP65 IEC 60529 front face)
IP2x back face) |
| Standards |
EN/IEC 60947-1
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
EN/IEC 60204-1
EN/ISO 13850
JIS C8201-5-1
UL 508
JIS C8201-1 |
| Product Certifications |
UL Listed
CSA |
| Vibration Resistance |
50 m/s² 10…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
150 m/s² 11 ms) half sine wave acceleration IEC 60068-2-27 |
