ZB5AW743

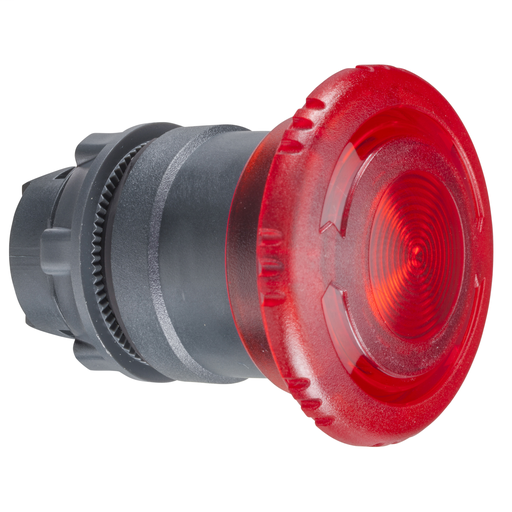

Red Ø40 illum mushroom pushbutton head Ø22 latching for integral LED
This red illuminated 40mm mushroom shape button head for integral LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | ZB5AW743 |
|---|---|
| Country of Origin | FR |
| UPC | 785901609780 |
| UPC11 | 78590160978 |
| EAN | 3389110666854 |
| Availability | S |
| Lead Time | 48 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | Yes |
| Weight | 0.05 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for illuminated emergency switching off push-button |
| Device Short Name | ZB5 |
| Product Compatibility | Integral LED |
| Bezel Material | Dark grey plastic |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Head Type | Standard |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | latching |
| Reset | Turn to release |
| Operator Profile | Red mushroom Ø 40 mm, unmarked |
| Cad Overall Width | 1.57 in (40 mm) |
| Cad Overall Height | 1.57 in (40 mm) |
| Cad Overall Depth | 1.97 in (50 mm) |
| Product Weight | 0.05 lb(US) (0.022 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical Durability | 300000 cycles |
| Main Group | Switching off |
| Group Of Product | Emer swi off illum turn to rel |
| Station Name | XALD 1 cut-out XALK 1 cut-out |
| Cap/Operator Or Lens Colour | Red |
| Marking | Unmarked |
| Electrical Composition Code | M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED MF1 2 single front mounting integral LED MR1 2 single rear mounting integral LED |
| Device Presentation | Basic sub-assemblies |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP69 IP69K |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK05 EN 50102 |
| Standards | EN/IEC 60947-5-4 EN/IEC 60947-1 GB 14048.5 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 UL 508 JIS C8201-1 |
| Product Certifications | UL Listed LROS (Lloyds register of shipping) BV RINA GL CSA DNV |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901609780 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
