| Range Of Product |
Harmony XB4 |
| Product Or Component Type |

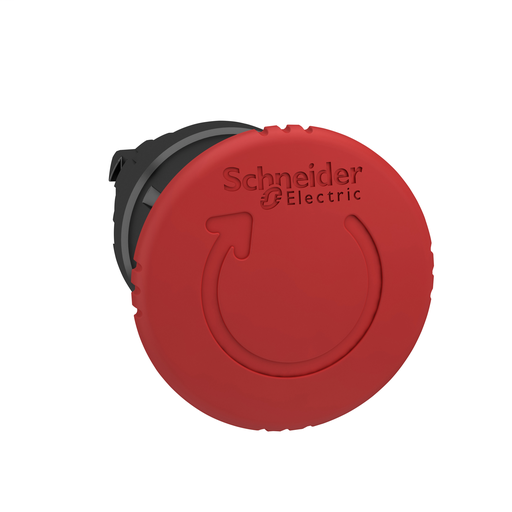

Head for emergency switching off push-button |
| Device Short Name |
ZB4 |
| Bezel Material |
Black metal |
| Mounting Diameter |
0.87 in (22 mm) |
| Sale Per Indivisible Qty |
1 |
| Shape Of Signaling Unit Head |
Round |
| Type Of Operator |
trigger action and mechanical latching |
| Reset |
Turn to release |
| Operator Profile |
Red mushroom Ø 40 mm, unmarked |
| Head Type |
Standard |
| Cad Overall Width |
1.57 in (40 mm) |
| Cad Overall Height |
1.57 in (40 mm) |
| Cad Overall Depth |
2.24 in (57 mm) |
| Product Weight |
0.16 lb(US) (0.073 kg) |
| Resistance High Press Washer |
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical Durability |
300000 cycles |
| Electrical Composition Code |
C7 4 single front mounting
C8 4 single and double front mounting
C11 3 single front mounting
C15 1 single front mounting
C10 4 single and double front mounting |
| Device Presentation |
Basic element |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class |
Class I IEC 61140 |
| IP Degree Of Protection |
IP66 IEC 60529
IP69
IP69K |
| Nema Degree Of Protection |
NEMA 13
NEMA 4X
NEMA 4
NEMA 12 |
| IK Degree Of Protection |
IK06 IEC 50102 |
| Standards |
EN/IEC 60204-1
JIS C8201-5-1
IEC 60364-5-53
CSA C22.2 No 14
EN/IEC 60947-5-1
GB 14048.5
EN/IEC 60947-1
UL 508
EN/ISO 13850
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C8201-1 |
| Product Certifications |
CSA
BV
RINA
DNV
LROS (Lloyds register of shipping)
UL Listed
GL |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category |
22468 - PUSHBUTTONS,22MM(METAL) NEW |
| Discount Schedule |
CS2 |
| GTIN |
00785901950479 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
CZ |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| Warranty |
18 months |
