XB5AS84449

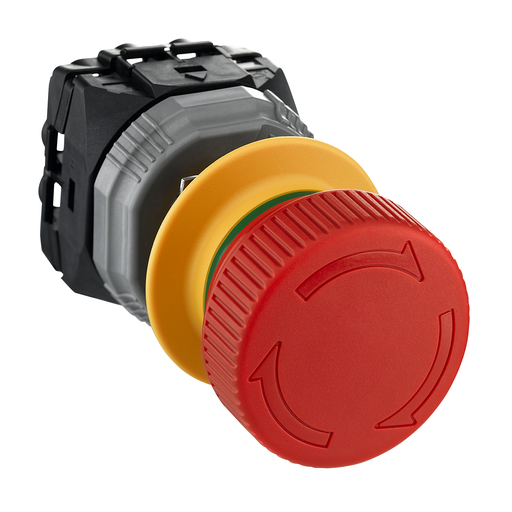

Red Ø40 emergency stop turn to release 2NC 1NO monitoring contacts
This Harmony XB5, emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Add to Quote CatalogueSpecifications
| Part Number | XB5AS84449 |
|---|---|
| UPC | 785901886488 |
| UPC11 | 78590188648 |
| EAN | 3606481205445 |
| Availability | N |
| Lead Time | 3 |
| HTs Code | 8536509033 |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | No |
| Depth | 3.13 inch |
| Height | 1.65 inch |
| Width | 1.65 inch |
| Weight | 0.20 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Emergency stop push-button |
| Device Short Name | XB5 |
| Bezel Material | Plastic |
| Fixing Collar Material | Plastic |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | trigger action and mechanical latching with mechanical state indicator |
| Reset | Push-pull Turn to release |
| Operator Profile | Red mushroom Ø 40 mm, unmarked |
| Contacts Type And Composition | 1 NO + 2 NC |
| Contact Operation | Slow-break |
| Connections - Terminals | Screw clamp terminals, <= 1.25 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, <= 1.25 mm² without cable end EN/IEC 60947-1 |
| Device Presentation | Complete product |
| Height | 1.65 in (42 mm) |
| Width | 1.65 in (42 mm) |
| Depth | 3.13 in (79.5 mm) |
| Terminals Description ISO n°1 | (13-14)NO (21-22)NC (11-12)NC |
| Product Weight | 0.20 lb(US) (0.0905 kg) |
| Contacts Usage | Monitoring contact |
| Positive Opening | With EN/IEC 60947-5-1 appendix K |
| Mechanical Durability | 100000 cycles |
| Tightening Torque | 7.08…13.28 lbf.in (0.8…1.5 N.m) EN/IEC 60947-1 |
| Shape Of Screw Head | Slotted flat Ø 5.5 mm Cross JIS No 2 Cross Philips No 2 |
| Contacts Material | Silver alloy - gold plated (Ag/Cu) |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5 |
| Ith Cnvtl Free Air Therm Crrt | 5 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage | 250 V 2)IEC 61140 |
| Uimp Rated Imp Wstd Voltage | 2.5 kV EN/IEC 60947-1 |
| Ie Rated Operational Current | 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Electrical Durability | 100000 cycles, AC-15, 1.5 A 240 V 1800 cyc/h 0.4 EN/IEC 60947-5-1 appendix C 100000 cycles, AC-15, 3 A 120 V 1800 cyc/h 0.4 EN/IEC 60947-5-1 appendix C 100000 cycles, DC-13, 0.1 A 250 V 1800 cyc/h 0.4 EN/IEC 60947-5-1 appendix C 100000 cycles, DC-13, 0.22 A 125 V 1800 cyc/h 0.4 EN/IEC 60947-5-1 appendix C |
| Ambient Air Temp For Storage | -40…176 °F (-40…80 °C) |
| Ambient Air Temp For Op | -4…140 °F (-20…60 °C) |
| Overvoltage Category | Class II IEC 61140 |
| IP Degree Of Protection | IP65 IEC 60529 front face) IP2x back face) |
| Standards | EN/IEC 60947-5-1 CSA C22.2 No 14 UL 508 JIS C8201-5-1 EN/IEC 60947-5-5 EN/IEC 60204-1 EN/IEC 60947-1 EN/ISO 13850 JIS C8201-1 |
| Product Certifications | CSA UL Listed |
| Vibration Resistance | 50 m/s² 10…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 150 m/s² 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22000 - Temporary Category for ITS Price Promotion |
| Discount Schedule | I |
| GTIN | 00785901886488 |
| Nbr. Of Units In Pkg. | 1 |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
