| Range Of Product |
Harmony XB4 |
| Product Or Component Type |

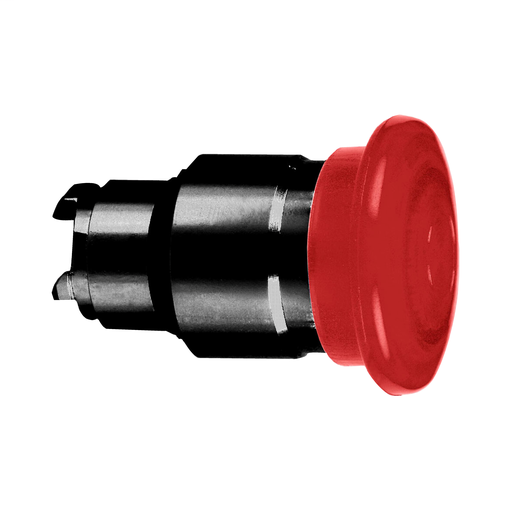

Head for illuminated emergency switching off push-button |
| Device Short Name |
ZB4 |
| Product Compatibility |
Integral LED |
| Bezel Material |
Black metal |
| Mounting Diameter |
0.87 in (22 mm) |
| Sale Per Indivisible Qty |
1 |
| Shape Of Signaling Unit Head |
Round |
| Type Of Operator |
mechanical latching |
| Reset |
Push-pull |
| Operator Profile |
Red mushroom Ø 40 mm, unmarked |
| Cad Overall Width |
1.57 in (40 mm) |
| Cad Overall Height |
1.57 in (40 mm) |
| Cad Overall Depth |
2.09 in (53 mm) |
| Product Weight |
0.11 lb(US) (0.051 kg) |
| Resistance High Press Washer |
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical Durability |
500000 cycles |
| Electrical Composition Code |
M6 2 single front mounting integral LED and transformer
M10 2 single front mounting integral LED
M3 4 single front mounting integral LED
M4 4 single and double front mounting integral LED |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Overvoltage Category |
Class I IEC 60536 |
| IP Degree Of Protection |
IP66 IEC 60529
IP69
IP69K |
| Nema Degree Of Protection |
NEMA 13
NEMA 4X |
| IK Degree Of Protection |
IK05 EN 50102 |
| Standards |
EN/IEC 60947-5-5
UL 508
EN/IEC 60947-5-1
JIS C8201-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
CSA C22.2 No 14
IEC 60364-5-53
JIS C8201-1 |
| Product Certifications |
BV
CSA
RINA
DNV
LROS (Lloyds register of shipping)
GL
UL Listed |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| GTIN |
03389110666663 |
| Warranty |
18 months |
