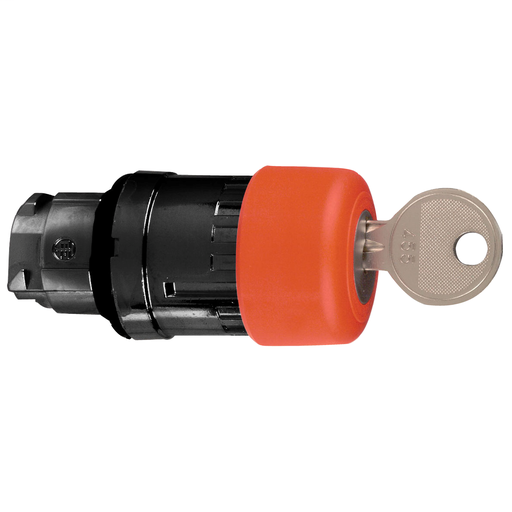

Red Ø30 Emergency stop, switching off head Ø22 trigger and latching key release
This Harmony XB4, emergency stop / shutdown 30mm mushroom red button head operates with a latched key release (key no.455) mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Add to Quote CatalogueSpecifications
| Part Number | ZB4BS9347 |
|---|---|
| UPC | 389110858785 |
| UPC11 | 38911085878 |
| EAN | 3389110858785 |
| Weight | 0.21 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Head for emergency switching off push-button |
| Device Short Name | ZB4 |
| Bezel Material | Black metal |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | trigger action and mechanical latching |
| Reset | Key release |
| Operator Profile | Red mushroom Ø 30 mm, unmarked |
| Type Of Keylock | Ronis 455 |
| Key Withdrawal Position | Center |
| Head Type | Standard |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.18 in (30 mm) |
| Cad Overall Depth | 3.11 in (79 mm) |
| Product Weight | 0.21 lb(US) (0.094 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical Durability | 300000 cycles |
| Electrical Composition Code | C7 4 single front mounting C8 4 single and double front mounting C11 3 single front mounting C15 1 single front mounting C10 4 single and double front mounting |
| Device Presentation | Basic element |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class | Class I IEC 61140 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 IP69 IP69K |
| Nema Degree Of Protection | NEMA 13 NEMA 4X NEMA 4 NEMA 12 |
| IK Degree Of Protection | IK03 IEC 50102 |
| Standards | GB 14048.5 EN/ISO 13850 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 IEC 60364-5-53 EN/IEC 60204-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 EN/IEC 60947-5-1 UL 508 JIS C8201-1 |
| Product Certifications | CSA DNV RINA UL Listed LROS (Lloyds register of shipping) GL BV |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| GTIN | 03389110858785 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty | 18 months |
