9001KR16H6

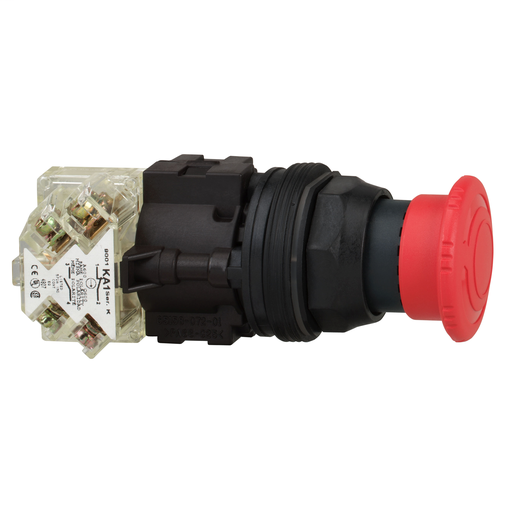

Red Ø30 emergency stop pushbutton Ø40 trigger action/turn release 1 NC
Specifications
| Part Number | 9001KR16H6 |
|---|---|
| Country of Origin | MX |
| UPC | 785901816577 |
| UPC11 | 78590181657 |
| Availability | N |
| Lead Time | 4 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8536509035 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
| Weight | 0.31 pound |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Emergency stop push-button |
| Device Short Name | 9001K |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Cad Overall Width | 1.57 in (40 mm) |
| Cad Overall Height | 1.57 in (40 mm) |
| Cad Overall Depth | 4.57 in (116 mm) |
| Product Weight | 0.31 lb(US) (0.141 kg) |
| Operating Position | Any position |
| Shape Of Signaling Unit Head | Round |
| Head Material | Plastic |
| Operator Pos Information | 2 positions |
| Contacts Type And Composition | 1 NC |
| Mechanical Durability | 5000000 cycles |
| Contacts Material | Silver alloy contacts |
| Device Presentation | Complete product |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Product Certifications | UL 508 NEMA |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901816577 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
