| Range Of Product |
Harmony XB4 |
| Product Or Component Type |

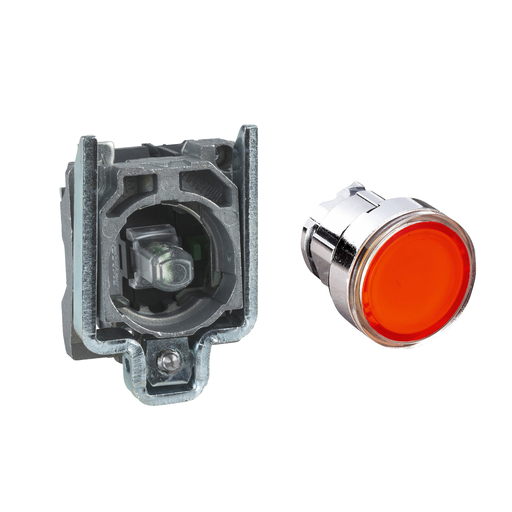

Illuminated push-button |
| Device Short Name |
XB4 |
| Bezel Material |
Chromium plated metal |
| Fixing Collar Material |
Zamak |
| Mounting Diameter |
0.87 in (22 mm) |
| Sale Per Indivisible Qty |
1 |
| Head Type |
Standard |
| Shape Of Signaling Unit Head |
Round |
| Operator Add Information |
With plain lens |
| Contacts Type And Composition |
1 NO |
| Contact Operation |
Slow-break |
| Light Source |
Protected LED |
| Bulb Base |
Integral LED |
| Us Rated Supply Voltage |
24 V AC/DC 50/60 Hz |
| Terminals Description ISO n°1 |
(13-14)NO |
| Resistance High Press Washer |
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts Usage |
Standard contacts |
| Positive Opening |
With EN/IEC 60947-5-1 appendix K |
| Operating Travel |
0.10 in (2.6 mm) NO changing electrical state)
0.17 in (4.3 mm) total travel) |
| Mechanical Durability |
5000000 cycles |
| Tightening Torque |
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head |
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm |
| Contacts Material |
Silver alloy (Ag/Ni) |
| Short-Circuit Protection |
10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage |
600 V 3)EN/IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage |
6 kV EN/IEC 60947-1 |
| Ie Rated Operational Current |
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability |
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability |
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Signalling Type |
Steady |
| Current Consumption |
18 mA |
| Service Life |
100000 h at rated voltage and 25 °C |
| Surge Withstand |
1 kV IEC 61000-4-5 |
| Supply Voltage Limits |
19.2…30 V DC
21.6…26.4 V AC |
| Device Presentation |
Complete product |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class |
Class I IEC 60536 |
| IP Degree Of Protection |
IP66 IEC 60529
IP67
IP69
IP69K |
| Nema Degree Of Protection |
NEMA 13
NEMA 4X |
| IK Degree Of Protection |
IK06 IEC 50102 |
| Standards |
UL 508
EN/IEC 60947-1
EN/IEC 60947-5-5
EN/IEC 60947-5-4
CSA C22.2 No 14
EN/IEC 60947-5-1
JIS C8201-5-1
JIS C8201-1 |
| Product Certifications |
CSA
BV
RINA
UL Listed
DNV
GL
LROS (Lloyds register of shipping) |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance To Fast Transients |
2 kV IEC 61000-4-4 |
| Resist To Electromagn Fields |
9.14 V/m (10 V/m) IEC 61000-4-3 |
