| Range Of Product |
Harmony XB4 |
| Product Or Component Type |

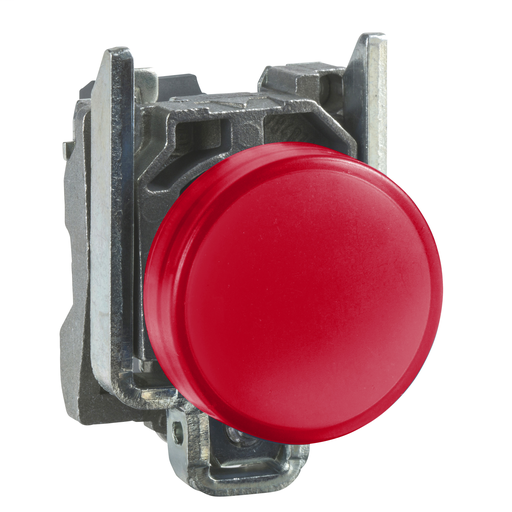

Pilot light |
| Device Short Name |
XB4 |
| Bezel Material |
Chromium plated metal |
| Fixing Collar Material |
Zamak |
| Mounting Diameter |
0.87 in (22 mm) |
| Head Type |
Standard |
| Sale Per Indivisible Qty |
1 |
| Shape Of Signaling Unit Head |
Round |
| Cap/Operator Or Lens Colour |
Red |
| Operator Add Information |
With plain lens |
| Light Source |
Protected LED |
| Bulb Base |
Integral LED |
| Light Source Colour |
Red |
| [Us] Rated Supply Voltage |
110...120 V AC 50/60 Hz |
| Height |
1.85 in (47 mm) |
| Width |
1.18 in (30 mm) |
| Depth |
2.13 in (54 mm) |
| Terminals Description ISO n°1 |
(X1-X2)PL |
| Product Weight |
0.18 lb(US) (0.08 kg) |
| Resistance High Press Washer |
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Connections - Terminals |
Spring clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
Spring clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Ui Rated Insulation Voltage |
250 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage |
4 kV EN 60947-1 |
| Signalling Type |
Steady |
| Current Consumption |
14 mA |
| Service Life |
100000 h at rated voltage and 25 °C |
| Surge Withstand |
1 kV IEC 61000-4-5 |
| Device Presentation |
Complete product |
| Supply Voltage Limits |
100…132 V AC |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class |
Class I IEC 60536 |
| IP Degree Of Protection |
IP66 IEC 60529
IP67
IP69
IP69K |
| Nema Degree Of Protection |
NEMA 13
NEMA 4X |
| IK Degree Of Protection |
IK06 IEC 50102 |
| Standards |
UL 508
EN/IEC 60947-5-5
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-5-1
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-1 |
| Product Certifications |
UL Listed
CSA |
| Vibration Resistance |
5 gn 12…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance To Fast Transients |
2 kV IEC 61000-4-4 |
| Resist To Electromagn Fields |
9.14 V/m (10 V/m) IEC 61000-4-3 |
| Resist Electrostatic Dischrg |
6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic Emission |
Class B IEC 55011 |
| Category |
22468 - PUSHBUTTONS,22MM(METAL) NEW |
| Discount Schedule |
CS2 |
| GTIN |
00785901957409 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
