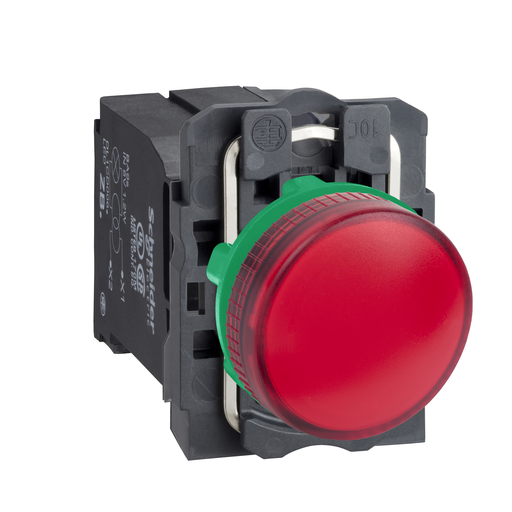

Red complete pilot light Ø22 plain lens with BA9s bulb 110…120V
This Harmony XB5, plain lens modular red pilot light is supplied with 110V to 120V AC, uses an integral transformer with BA9s base and has screw-clamp terminals. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base illumination and transformer. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Add to Quote CatalogueSpecifications
| Part Number | XB5AV34 |
|---|---|
| Country of Origin | FR |
| UPC | 785901383925 |
| UPC11 | 78590138392 |
| EAN | 3389110903904 |
| Availability | N |
| Lead Time | 18 |
| UNSPSC | 39121534 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Depth | 2.17 inch |
| Height | 1.65 inch |
| Width | 1.18 inch |
| Weight | 0.24 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | XB5 |
| Bezel Material | Dark grey plastic |
| Fixing Collar Material | Plastic |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Cap/Operator Or Lens Colour | Red |
| Operator Add Information | With plain lens |
| Light Source | Incandescent |
| Bulb Base | BA 9s |
| Light Block Supply | Via integral transformer 1.2 VA 6 V |
| Light Source Colour | Red |
| Us Rated Supply Voltage | 110...120 V AC 50/60 Hz |
| [Us] Rated Supply Voltage | 110...120 V AC 50/60 Hz |
| Height | 1.65 in (42 mm) |
| Width | 1.18 in (30 mm) |
| Depth | 2.17 in (55 mm) |
| Terminals Description ISO n°1 | (X1-X2)PL |
| Product Weight | 0.24 lb(US) (0.109 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Ui Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage | 6 kV EN 60947-1 |
| Signalling Type | Steady |
| Device Presentation | Complete product |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…131 °F (-40…55 °C) |
| Electrical Shock Protect Class | Class II IEC 60536 |
| Overvoltage Category | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK05 IEC 50102 |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-1 UL 508 JIS C8201-5-1 JIS C8201-1 |
| Product Certifications | CSA UL Listed |
| Vibration Resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901383925 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
