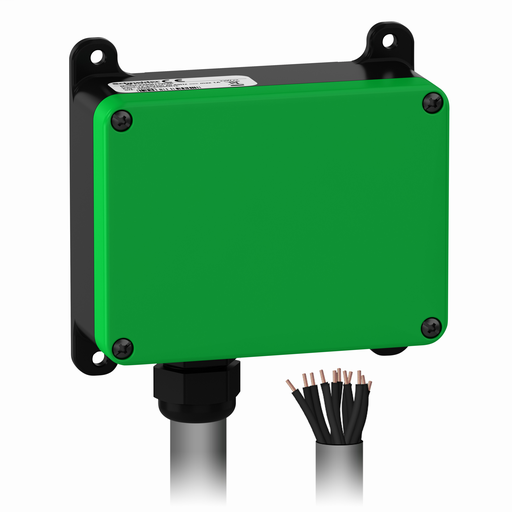

ZARB05WSP
Receiver, Harmony pocket remote, 5 relays output, pre-wired 1.5 m cable, 12…24 V DC
Specifications
| Part Number | ZARB05WSP |
|---|---|
| EAN | 3606481499417 |
| Availability | N |
| Lead Time | 38 |
| HTs Code | 8537109170 |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Depth | 2.01 inch |
| Height | 4.61 inch |
| Width | 4.72 inch |
| Weight | 0.88 pound |
Characteristics
| Range Of Product | Harmony Pocket Remote |
|---|---|
| Product Or Component Type | Base station |
| Device Short Name | ZARB |
| Cable Entry | Cable pre-wired |
| Material | ABS + PC |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Provided Equipment | Internal antenna |
| Number Of Relays | 5 |
| Relay Type | Motion relay outputs 5 C/O Auxiliary relay outputs |
| Safety Outputs | 2 NC relay outputs |
| Maximum Switching Current | 10 mA AC |
| Maximum Switching Voltage | 240 V AC +/- 20 %) |
| Communication Network Type | Wireless |
| Transmission Frequency | 2.4 GHz |
| Maximum Sensing Distance | 984.25 ft (300 m) in free field |
| Fixing Mode | 4 holes |
| Electrical Durability | 100000 cycles |
| Mechanical Durability | 10000000 cycles |
| Width | 4.72 in (120 mm) |
| Height | 4.61 in (117 mm) |
| Depth | 2.01 in (51 mm) |
| Product Weight | 0.88 lb(US) (0.40 kg) |
| IP Degree Of Protection | IP66 |
| Radio Agreement | FCC IC |
| Relative Humidity | 0…97 % |
| Ambient Air Temp For Op | -4…131 °F (-20…55 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Product Certifications | CE |
| Environmental Characteristic | RoHS compliant |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
