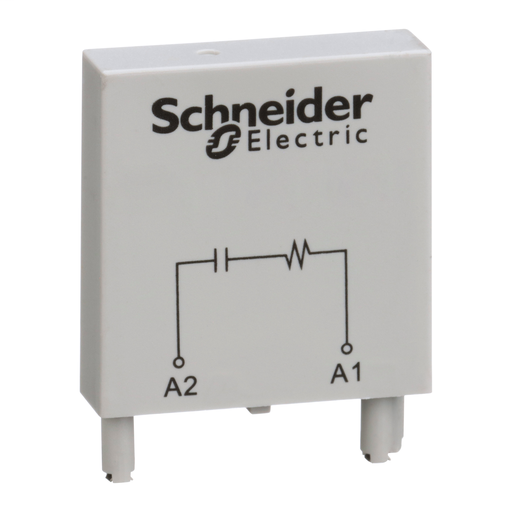

70-ASMR-24
RC suppressor, Legacy, general purpose relay accessory, 24 VAC/VDC
Specifications
| Part Number | 70-ASMR-24 |
|---|---|
| UPC | 606480278280 |
| UPC11 | 60648027828 |
| EAN | 3606480278280 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Depth | 1.37 inch |
| Width | 1.37 inch |
Characteristics
| Product Range | Legacy |
|---|---|
| Product Type | Suppressor module |
| Product Compatibility | socket 70-750 plug-in socket 70-783 plug-in socket 70-784 plug-in socket 70-788 plug-in |
| Device Application | Protection |
| Rated Voltage | 24 V |
| Protection Technology | Varistance and RC circuit |
| Width | 1.37 in (34.80 mm) |
| Depth | 1.37 in (34.7 mm) |
| GTIN | 03606480278280 |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
