| Range Of Product |
Harmony iPC |
| Product Or Component Type |

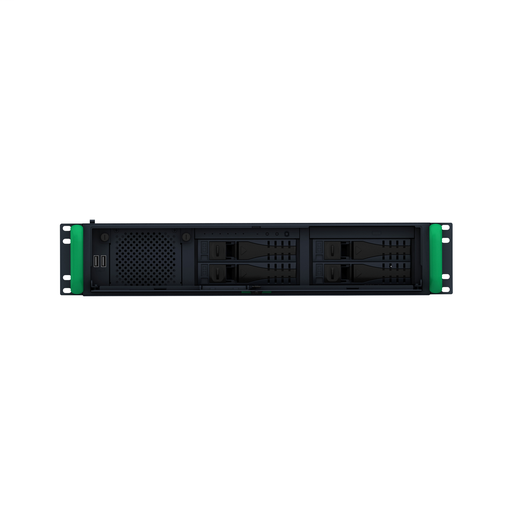

Industrial rack PC |
| Device Short Name |
Rack PC 2U Universal |
| Range Compatibility |
IDisplay |
| Processor Name |
Intel Core i3 2120 3.3 GHz L3 cache 3 MB |
| Storage Slots |
2 front hot swap trays (2 SATA2)
2 front hot swap trays (2 SATA3) |
| Data Storage Equipment |
500 GB Internal enterprise hard disk - hot swap |
| Memory Description |
Up to 32 GB RAM DDR3 internal 4
4 GB RAM DDR3 internal 2 by default) |
| Number Of Slots |
1 PCI
2 PCI express 16x |
| Drive Type |
DVD-RW |
| Video Controller Type |
Intel HD Graphics |
| Display Resolution |
2048 x 1536 pixels |
| Watchdog Timer |
1…255 ms |
| Type Of Cooling |
3 fans with speed control |
| Integrated Connection Type |
4 USB 3.0 port
2 COM1 serial link - male SUB-D 9 - RS232
1 VGA
1 DVI video port
2 USB 2.0 port
1 audio micro input
1 audio line output
4 COM1 serial link (optional) - male SUB-D 9 - RS232/RS485
2 Ethernet - RJ45 10/100/1000 Mbit/s) |
| Switch Application |
Case open |
| Operating System |
Windows 7 64 bits Ultimate - multi-language |
| Software Package |
Vijeo Designer run time demo run time demo license not included
EcoStruxure Operator Terminal Expert run time demo license not included |
| Motherboard Type |
Micro ATX |
| [Us] Rated Supply Voltage |
100...240 V AC power supply |
| Power Consumption In W |
300 W |
| Mounting Support |
19" rack |
| Depth |
20.62 in (523.8 mm) |
| Height |
3.46 in (88 mm) |
| Width |
18.98 in (482 mm) |
| Product Weight |
31.97 lb(US) (14.5 kg) |
| Product Certifications |
CCC
EAC
CULus |
| Standards |
CSA 22-2 No 60950-1-07
EN 55011 class A group 1
EN 60950-1
EN 61000-6-2
EN 61000-6-4
FCC part 15
UL 60950-1 |
| Quality Labels |
CE |
| Directives |
2006/95/EC - low voltage directive
2004/108/EC - electromagnetic compatibility |
| IP Degree Of Protection |
IP40 IEC 60529 |
| Ambient Air Temp For Storage |
-4…140 °F (-20…60 °C) IEC 60068-2-2 |
| Relative Humidity |
10…85 % non-condensing IEC 60068-2-78 |
| Ambient Air Temp For Op |
32…104 °F (0…40 °C) IEC 60068-2-2 |
| Vibration Resistance |
0.002 g²/Hz 5…500 Hz)operating IEC 60068-2-64
2 gn 5…500 Hz)not operating IEC 60068-2-6 |
| Shock Resistance |
10 gn 11 ms IEC 60068-2-27 |
| Category |
22575 - MAGELIS MC3 |
| Discount Schedule |
MC3 |
| GTIN |
00785901990970 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
CN |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
