PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS

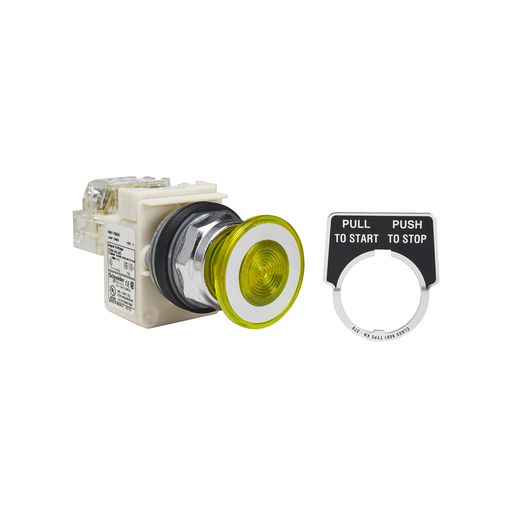

This Harmony 9001K, modular illuminated yellow push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9001KR9P35Y |
|---|---|
| Country of Origin | MX |
| UPC | 785901318514 |
| UPC11 | 78590131851 |
| EAN | 0785901318514 |
| Availability | N |
| Lead Time | 3 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
| Weight | 0.43 pound |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Mushroom head push-button |
| Device Short Name | 9001K |
| Type Of Operator | push-pull |
| Operator Profile | Yellow mushroom Ø 41 mm, unmarked |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Product Weight | 0.43 lb(US) (0.195 kg) |
| Operating Position | Any position |
| Shape Of Signaling Unit Head | Round |
| Head Material | Plastic |
| Operator Pos Information | 2 positions |
| Contacts Type And Composition | Without contact block |
| Mechanical Durability | 5000000 cycles |
| Light Source | incandescent |
| Bulb Base | BA 9s |
| Light Block Supply | Direct 24...28 V AC/DC |
| Device Presentation | Basic element |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Overvoltage Category | Class II IEC 61140 |
| IP Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 |
| Standards | EN/IEC 60947-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C 4520 JIS C 852 UL 508 CSA C22.2 No 14 |
| Product Certifications | NEMA UL 508 |
| Vibration Resistance | 7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901318514 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
