PUSHBUTTON OPERATOR 30MM SK +OPTIONS

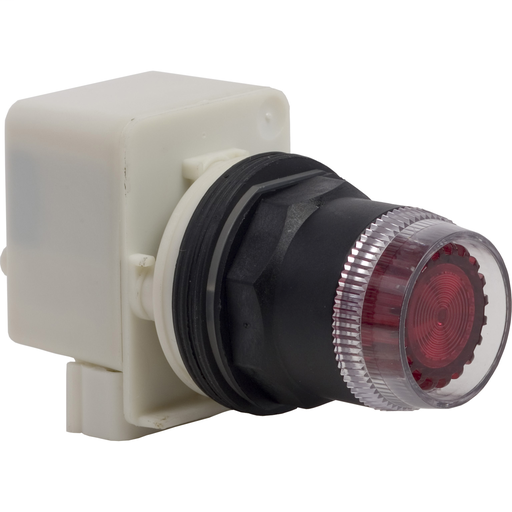

This Harmony 9001SK, modular illuminated flush red push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9001SK1L1R |
|---|---|
| Country of Origin | MX |
| UPC | 785901820949 |
| UPC11 | 78590182094 |
| Availability | S |
| UNSPSC | 39122216 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
Characteristics
| Range Of Product | Harmony 9001SK |
|---|---|
| Product Or Component Type | Push-button |
| Device Short Name | 9001SK |
| Bezel Material | Black plastic |
| Mounting Diameter | 1.18 in (30 mm) |
| Shape Of Signaling Unit Head | Octagonal |
| Light Block Supply | Via transformer 120 V AC 50/60 Hz Via transformer 110 V AC 50/60 Hz |
| Contacts Type And Composition | Without contact block |
| Product Certifications | UL listed file E42259 CCN NKCR CSA LR24590 class 3211 03 CE |
| IP Degree Of Protection | IP64 |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 00785901820949 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
