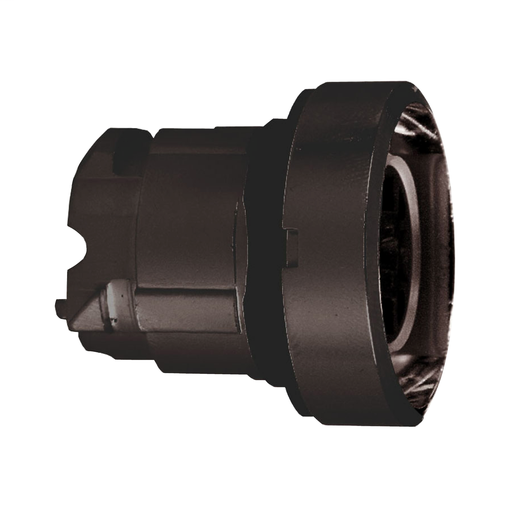

Pushbutton head Ø22 spring return without cap
This Harmony XB4, flush button head without cap operates with a spring return / impulse mechanism. This button head without cap allows users to customize it with any compatible desired cap to support your machines and operating functions. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Add to Quote CatalogueSpecifications
| Part Number | ZB4BA07 |
|---|---|
| UPC | 389110220001 |
| UPC11 | 38911022000 |
| EAN | 3389110220001 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Head for non-illuminated push-button |
| Device Short Name | ZB4 |
| Bezel Material | Black metal |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Head Type | Standard |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | without cap |
| Cad Overall Width | 1.14 in (29 mm) |
| Cad Overall Height | 1.14 in (29 mm) |
| Cad Overall Depth | 1.10 in (28 mm) |
| Mechanical Durability | 10000000 cycles |
| Electrical Composition Code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class I IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 IP69 IP69K |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK06 IEC 50102 |
| Standards | JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 UL 508 JIS C8201-1 |
| Product Certifications | BV CSA LROS (Lloyds register of shipping) UL Listed GL RINA DNV |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| GTIN | 03389110220001 |
| Nbr. Of Units In Pkg. | 1 |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
Documents
- Instruction Sheet (155997101A55)
- Instruction Sheet (W915599610111)
- Instruction Sheet (155997103A55)
- End Of Life Manual (ENVEOLI1808008EN)
- Product Datasheet (pdf)
- Product Environmental (ENVPEP110928EN)
- Product Environmental (ENVPEP1808008EN)
- Certificate (CCC-2003010305059267)
- Marine Certificate (LR-16-20077_2016-07-27)
