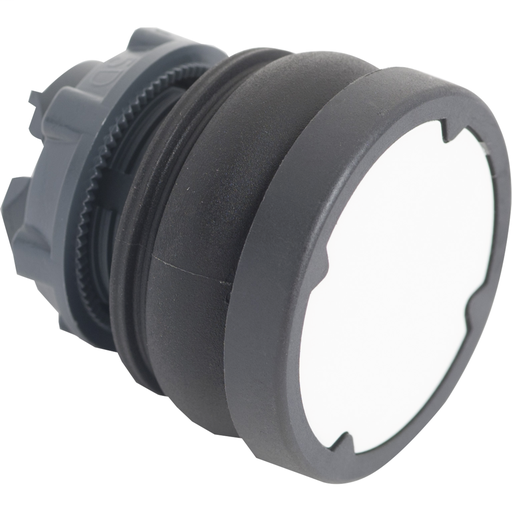

Pushbutton head for harsh environment – white – without marking
This Harmony XB5, flush white button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Add to Quote CatalogueSpecifications
| Part Number | ZB5AC180 |
|---|---|
| Country of Origin | FR |
| UPC | 785901948865 |
| UPC11 | 78590194886 |
| EAN | 3606480444791 |
| Availability | N |
| Lead Time | 24 |
| UNSPSC | 39122216 |
| HTs Code | 8536509031 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Weight | 0.05 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for push-button |
| Device Short Name | ZB5 |
| Bezel Material | Black plastic |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Add Information | Vertical mounting Horizontal mounting |
| Cad Overall Width | 1.46 in (37 mm) |
| Cad Overall Height | 0.73 in (18.5 mm) |
| Cad Overall Depth | 1.46 in (37 mm) |
| Product Weight | 0.05 lb(US) (0.024 kg) |
| Resistance High Press Washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
| Operator Profile | White flush, unmarked |
| Mechanical Durability | 10000000 cycles |
| Electrical Composition Code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting SF1 3 single front mounting SR1 3 single rear mounting |
| Device Presentation | Basic element |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class | Class II IEC 61140 |
| IP Degree Of Protection | IP66 IEC 60529 IP69K IP67 |
| Nema Degree Of Protection | NEMA 4 UL 508 NEMA 13 NEMA 12 |
| IK Degree Of Protection | IK03 IEC 62262 |
| Standards | UL 508 IEC 60947-5-1 IEC 60947-1 CSA C22.2 |
| Product Certifications | CSA UL CE |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901948865 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
