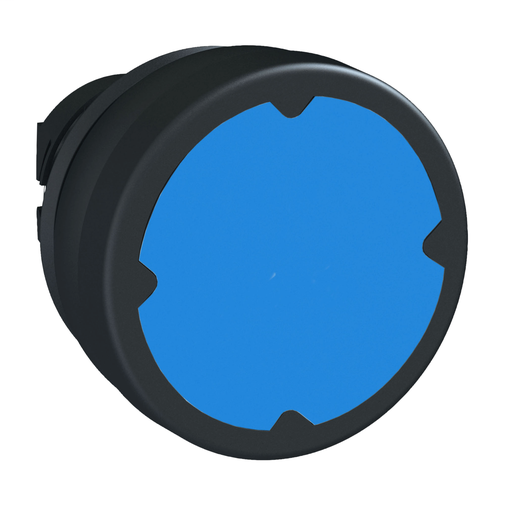

ZB5AC680
Pushbutton head for harsh environment – dark blue – without marking
This blue button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | ZB5AC680 |
|---|---|
| Country of Origin | FR |
| UPC | 785901958284 |
| UPC11 | 78590195828 |
| EAN | 3606480444845 |
| Availability | N |
| Lead Time | 23 |
| HTs Code | 8536509033 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Weight | 0.05 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for push-button |
| Device Short Name | ZB5 |
| Bezel Material | Black plastic |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Add Information | Vertical mounting Horizontal mounting |
| Cad Overall Width | 1.46 in (37 mm) |
| Cad Overall Height | 0.73 in (18.5 mm) |
| Cad Overall Depth | 1.46 in (37 mm) |
| Product Weight | 0.05 lb(US) (0.024 kg) |
| Resistance High Press Washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
| Operator Profile | Blue flush, unmarked |
| Mechanical Durability | 10000000 cycles |
| Electrical Composition Code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting SF1 3 single front mounting SR1 3 single rear mounting |
| Device Presentation | Basic element |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class | Class II IEC 61140 |
| IP Degree Of Protection | IP66 IEC 60529 IP69K IP67 |
| Nema Degree Of Protection | NEMA 4 UL 508 NEMA 13 NEMA 12 |
| IK Degree Of Protection | IK03 IEC 62262 |
| Standards | UL 508 IEC 60947-1 IEC 60947-5-1 CSA C22.2 |
| Product Certifications | UL CE CSA |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901958284 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
