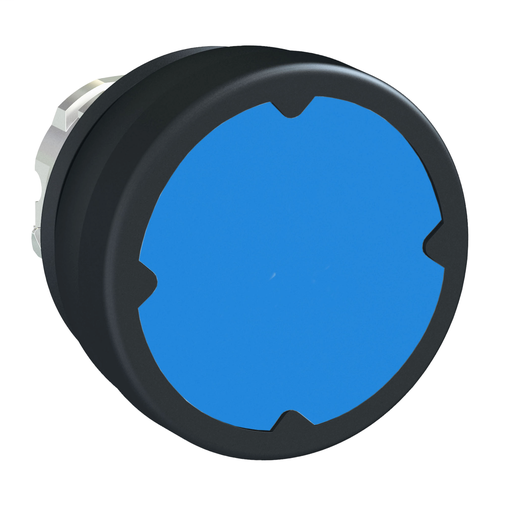

Pushbutton head for harsh environment – dark blue – without marking
This Harmony XB4, flush blue button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Add to Quote CatalogueSpecifications
| Part Number | ZB4BC680 |
|---|---|
| Country of Origin | FR |
| UPC | 606480444685 |
| UPC11 | 60648044468 |
| EAN | 3606480444685 |
| Availability | N |
| Lead Time | 24 |
| UNSPSC | 39122216 |
| HTs Code | 8536509031 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Weight | 0.08 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Head for push-button |
| Device Short Name | ZB4 |
| Bezel Material | Chromium plated metal |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Cad Overall Width | 1.46 in (37 mm) |
| Cad Overall Height | 0.73 in (18.5 mm) |
| Cad Overall Depth | 1.46 in (37 mm) |
| Product Weight | 0.08 lb(US) (0.036 kg) |
| Electrical Shock Protect Class | Class I IEC 61140 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Blue flush, unmarked |
| Operator Add Information | Horizontal mounting Vertical mounting |
| Mechanical Durability | 10000000 cycles |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Main Group | Harsh environment |
| Group Of Product | Flush unmarked |
| Cap/Operator Or Lens Colour | Blue |
| Marking | Unmarked |
| Electrical Composition Code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting |
| Device Presentation | Basic element |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| IP Degree Of Protection | IP66 IEC 60529 IP69K IP67 IP69 |
| Nema Degree Of Protection | NEMA 4 UL 508 NEMA 13 NEMA 12 |
| Resistance High Press Washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
| IK Degree Of Protection | IK06 IEC 62262 |
| Standards | UL 508 IEC 60947-5-1 CSA C22.2 IEC 60947-1 |
| Product Certifications | CSA UL CE |
| Category | 22468 - PUSHBUTTONS,22MM(METAL) NEW |
| Discount Schedule | CS2 |
| GTIN | 03606480444685 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
