| Range Of Product |
Harmony XB4 |
| Product Or Component Type |

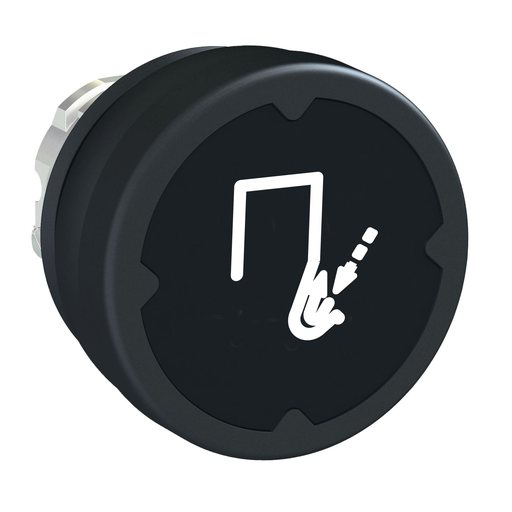

Head for push-button |
| Device Short Name |
ZB4 |
| Bezel Material |
Chromium plated metal |
| Head Type |
Standard |
| Mounting Diameter |
0.87 in (22 mm) |
| Sale Per Indivisible Qty |
1 |
| Cad Overall Width |
1.46 in (37 mm) |
| Cad Overall Height |
0.73 in (18.5 mm) |
| Cad Overall Depth |
1.46 in (37 mm) |
| Product Weight |
0.08 lb(US) (0.036 kg) |
| Electrical Shock Protect Class |
Class I IEC 61140 |
| Shape Of Signaling Unit Head |
Round |
| Type Of Operator |
spring return |
| Operator Profile |
Black flush, type H056 white) |
| Operator Add Information |
Horizontal mounting |
| Mechanical Durability |
3000000 cycles |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Main Group |
Harsh environment |
| Group Of Product |
Flush marked type H056 |
| Cap/Operator Or Lens Colour |
Black |
| Marking |
Type H056 |
| Colour Of Marking |
White |
| Electrical Composition Code |
C1 9 single front mounting
C2 9 single and double front mounting
C11 3 single front mounting
C15 1 single front mounting |
| Ambient Air Temp For Storage |
-40…185 °F (-40…85 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| IP Degree Of Protection |
IP66 IEC 60529
IP69K
IP69 |
| Nema Degree Of Protection |
NEMA 4 UL 508
NEMA 13
NEMA 12 |
| Resistance High Press Washer |
0.01 psi (90 Pa) 180 °F (82.5 °C) |
| IK Degree Of Protection |
IK06 IEC 62262 |
| Standards |
UL 508
CSA C22.2
IEC 60947-1
IEC 60947-5-1 |
| Product Certifications |
CSA
CE
UL |
| GTIN |
03606480437434 |
| Nbr. Of Units In Pkg. |
1 |
| Warranty |
18 months |
