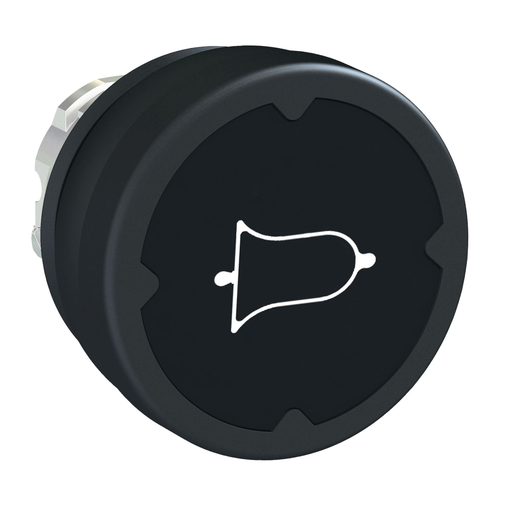

Pushbutton head for harsh environment – black – with marking-legend rotated 90°
This head for push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with a black flush cap, diameter 37mm, marked type H001 white, with bell symbol. The marking-legend is rotated 90°. This head allows the associated contact block to be mounted in horizontal position (instead of vertical). It operates with with spring return mechanism. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 36g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications
Add to Quote CatalogueSpecifications
| Part Number | ZB4BC28001RA |
|---|---|
| Country of Origin | FR |
| UPC | 606480444135 |
| UPC11 | 60648044413 |
| EAN | 3606480444135 |
| Availability | N |
| Lead Time | 23 |
| ECCN | EAR99 |
| HTs Code | 8538908160 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Weight | 0.08 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Head for push-button |
| Device Short Name | ZB4 |
| Bezel Material | Chromium plated metal |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Cad Overall Width | 1.46 in (37 mm) |
| Cad Overall Height | 0.73 in (18.5 mm) |
| Cad Overall Depth | 1.46 in (37 mm) |
| Product Weight | 0.08 lb(US) (0.036 kg) |
| Electrical Shock Protect Class | Class I IEC 61140 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Black flush, type H001 white) |
| Operator Add Information | Horizontal mounting |
| Mechanical Durability | 3000000 cycles |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Main Group | Harsh environment |
| Group Of Product | Flush marked type H001 |
| Cap/Operator Or Lens Colour | Black |
| Marking | Type H001 |
| Colour Of Marking | White |
| Electrical Composition Code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| IP Degree Of Protection | IP66 IEC 60529 IP69K IP69 |
| Nema Degree Of Protection | NEMA 4 UL 508 NEMA 13 NEMA 12 |
| Resistance High Press Washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
| IK Degree Of Protection | IK06 IEC 62262 |
| Standards | IEC 60947-5-1 CSA C22.2 IEC 60947-1 UL 508 |
| Product Certifications | CE UL CSA |
| Category | 22468 - PUSHBUTTONS,22MM(METAL) NEW |
| Discount Schedule | CS2 |
| GTIN | 03606480444135 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
