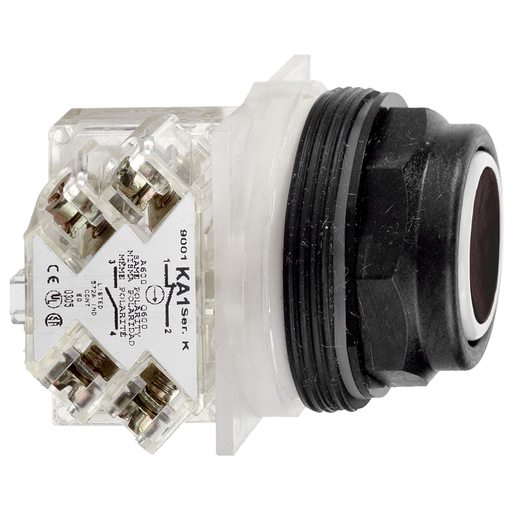

This Schneider Electric Harmony 9001SK modular flush black push-button with full guard has 2 positions, operates with spring return mechanism and has a double insulated plastic bezel. It has 1 x NO + 1 x NC contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. This flush push-button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13). Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Add to Quote CataloguePart Number | 9001SKR1BH13 |
---|---|
Country of Origin | MX |
UPC | 785901848813 |
UPC11 | 78590184881 |
EAN | 3389118037076 |
Availability | S |
Lead Time | 4 |
UNSPSC | 39122216 |
ECCN | EAR99 |
HTs Code | 8536509035 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | CS1 |
Return Indicator | Yes |
Weight | 0.19 pound |
Range Of Product | Harmony 9001SK |
---|---|
Product Or Component Type | Push-button |
Device Short Name | 9001SK |
Type Of Operator | spring return |
Operator Profile | Black flush, unmarked |
Operator Add Information | Full guard in plastic |
Bezel Material | Plastic |
Mounting Diameter | 1.18 in (30 mm) |
Shape Of Signaling Unit Head | Octagonal |
Contacts Type And Composition | 1 C/O |
Contact Operation | Slow-break |
Connections - Terminals | Screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
Tightening Torque | 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1 |
Shape Of Screw Head | Cross slotted |
Mechanical Durability | 5000000 cycles |
Operating Position | Any position |
Ie Rated Operational Current | 3 A 240 V, AC-15, A600-Q600 0.55 A 125 V, DC-13, A600-Q600 |
Ui Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
Uimp Rated Imp Wstd Voltage | 2.5 kV EN/IEC 60947-1 |
Contacts Material | Silver alloy contacts |
Positive Opening | Without |
Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
Ith Cnvtl Free Air Therm Crrt | 10 A |
Icm Rated Sc Making Cap | 12 kA 600 V AC-15, 7200 VA 15 kA 480 V AC-15, 7200 VA 30 kA 240 V AC-15, 7200 VA 60 kA 120 V AC-15, 7200 VA 0.1 kA 600 V DC-13 0.27 kA 250 V DC-13 0.55 kA 125 V DC-13 |
Rated Breaking Capacity | 3 kA 240 V AC-15, 720 VA 6 kA 120 V AC-15, 720 VA 6 kA 125 V DC-13, 720 VA 1.2 kA 600 V AC-15, 720 VA 1.5 kA 480 V AC-15, 720 VA 0.1 kA 600 V DC-13 0.27 kA 250 V DC-13 |
Product Weight | 0.19 lb(US) (0.086 kg) |
Device Presentation | Complete product |
Standards | EN/IEC 60947-5-4 UL 508 JIS C 4520 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-1 JIS C 852 |
Product Certifications | NEMA UL 508 |
Protective Treatment | TC |
Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
Vibration Resistance | 7 gn 2…500 Hz)IEC 60068-2-6 |
Shock Resistance | 50 gn IEC 60068-2-27 |
Electrical Shock Protect Class | Class II IEC 61140 |
IP Degree Of Protection | IP66 IEC 60529 |
Nema Degree Of Protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X |
Category | 21429 - 9001 SK,SKY |
Discount Schedule | CS1 |
GTIN | 00785901848813 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | MX |
Green Premium Status | Green Premium product |
REACh Free Of SVHC | Yes |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Toxic Heavy Metal Free | Yes |
Mercury Free | Yes |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Warranty | 18 months |
