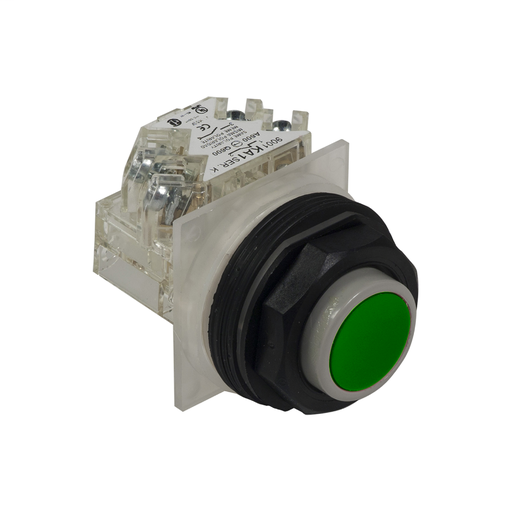

PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS
This Harmony 9001SK, modular recessed green push button with extended guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NC contact. This recessed push button with extended guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9001SKR2GH6 |
|---|---|
| Country of Origin | MX |
| UPC | 785901469506 |
| UPC11 | 78590146950 |
| EAN | 0785901469506 |
| Availability | N |
| Lead Time | 4 |
| UNSPSC | 39122216 |
| HTs Code | 8536509065 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
Characteristics
| Range Of Product | Harmony 9001SK |
|---|---|
| Product Or Component Type | Push-button |
| Device Short Name | 9001SK |
| Type Of Operator | spring return |
| Operator Profile | Green recessed |
| Operator Add Information | Extended plastic guard |
| Bezel Material | Plastic |
| Mounting Diameter | 1.18 in (30 mm) |
| Contacts Type And Composition | 1 NC |
| Contact Operation | Standard |
| Mechanical Durability | 5000000 cycles |
| Device Presentation | Complete product |
| Standards | EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C 4520 EN/IEC 60947-1 UL 508 CSA C22.2 No 14 JIS C 852 |
| IP Degree Of Protection | IP66 |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 00785901469506 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
