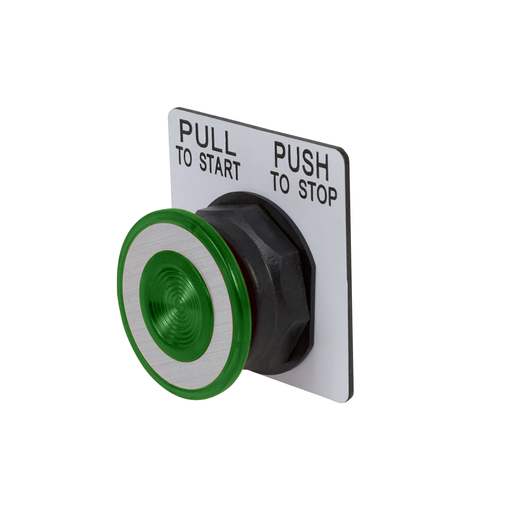

9001SKR8P5RH25
PUSHBUTTON 480VAC 30MM SK +OPTIONS
Specifications
| Part Number | 9001SKR8P5RH25 |
|---|---|
| Country of Origin | MX |
| UPC | 785901398707 |
| UPC11 | 78590139870 |
| EAN | 0785901398707 |
| Availability | N |
| Lead Time | 5 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8536509035 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
Characteristics
| Range Of Product | Harmony 9001SK |
|---|---|
| Product Or Component Type | Push-button |
| Device Short Name | 9001SK |
| Bezel Material | Plastic |
| Mounting Diameter | 1.18 in (30 mm) |
| Contacts Type And Composition | 1 NC + 1 NC |
| Contact Operation | Standard |
| Mechanical Durability | 5000000 cycles |
| Device Presentation | Complete product |
| Standards | EN/IEC 60947-1 CSA C22.2 No 14 JIS C 4520 EN/IEC 60947-5-4 JIS C 852 UL 508 EN/IEC 60947-5-1 |
| IP Degree Of Protection | IP66 |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 00785901398707 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
