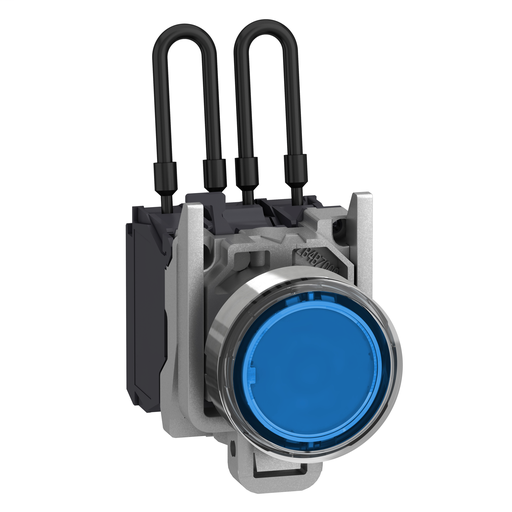

XB4BW26B5
Push-to-test pilot light 24V blue
This Harmony XB4 plain lens push to test modular blue pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | XB4BW26B5 |
|---|---|
| UPC | 606489420604 |
| UPC11 | 60648942060 |
| EAN | 3606489420604 |
| Availability | N |
| Lead Time | 18 |
| HTs Code | 8531809051 |
| Discount Schedule | CS2 |
| Depth | 2.17 inch |
| Height | 1.65 inch |
| Width | 1.18 inch |
| Weight | 0.20 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Push-to-test pilot light |
| Device Short Name | XB4 |
| Bezel Material | Metal |
| Fixing Collar Material | Metal |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Height | 1.65 in (42 mm) |
| Width | 1.18 in (30 mm) |
| Depth | 2.17 in (55 mm) |
| Product Weight | 0.20 lb(US) (0.09 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Embedding Depth | 1.69 in (43 mm) |
| Shape Of Signaling Unit Head | Round |
| Cap/Operator Or Lens Colour | Blue |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60068-2-27 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60068-2-27 |
| Tightening Torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) EN/IEC 60947-1 |
| Ui Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage | 6 kV EN 60947-1 |
| Signalling Type | Steady |
| Light Source | Integral LED |
| Light Source Colour | Blue |
| Current Consumption | 18 mA |
| Service Life | 1.5 year(s) |
| Surge Withstand | 1 kV |
| Us Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60536 IP67 IP69 IP69K |
| Nema Degree Of Protection | NEMA 13 IEC 60529 NEMA 4X |
| IK Degree Of Protection | IK05 IEC 50102 |
| Standards | CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 GB 14048.5 JIS C8201-5-1 UL 508 JIS C8201-1 |
| Product Certifications | GL LROS (Lloyds register of shipping) BV RINA DNV UL Listed CSA |
| Vibration Resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-6 50 gn 11 ms) half sine wave acceleration IEC 60068-2-6 |
| GTIN | 03606489420604 |
| Nbr. Of Units In Pkg. | 1 |
| EU RoHs Directive | Under investigation |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
