| Range Of Product |
Harmony XB5 |
| Product Or Component Type |

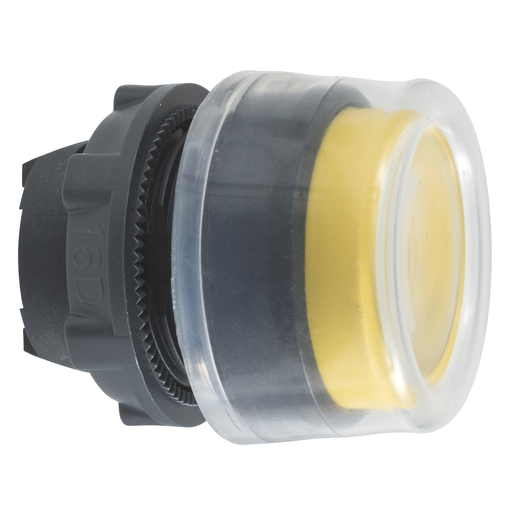

Head for non-illuminated push-button |
| Device Short Name |
ZB5 |
| Product Compatibility |
Not compatible with legend holder |
| Bezel Material |
Dark grey plastic |
| Mounting Diameter |
0.87 in (22 mm) |
| Head Type |
Standard |
| Sale Per Indivisible Qty |
1 |
| Shape Of Signaling Unit Head |
Round |
| Type Of Operator |
spring return |
| Operator Profile |
Yellow projecting, unmarked |
| Operator Add Information |
Clear boot |
| Cad Overall Width |
1.18 in (30 mm) |
| Cad Overall Height |
1.18 in (30 mm) |
| Cad Overall Depth |
1.38 in (35 mm) |
| Product Weight |
0.03 lb(US) (0.014 kg) |
| Mechanical Durability |
10000000 cycles |
| Station Name |
XALD 1...5 cut-outs
XALK 2...5 cut-outs |
| Electrical Composition Code |
C1 9 single front mounting
C2 9 single and double front mounting
C11 3 single front mounting
C15 1 single front mounting
SF1 3 single front mounting
SR1 3 single rear mounting |
| Device Presentation |
Basic element |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Overvoltage Category |
Class II IEC 60536 |
| IP Degree Of Protection |
IP66 IEC 60529
IP67 IEC 60529
IP69 IEC 60529
IP69K ISO 20653 |
| Nema Degree Of Protection |
NEMA 13
NEMA 4X |
| Resistance High Press Washer |
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK Degree Of Protection |
IK03 IEC 50102 |
| Standards |
EN/IEC 60947-5-1
UL 508
CSA C22.2 No 14
EN/IEC 60947-1
JIS C8201-5-1
EN/IEC 60947-5-4
JIS C8201-1 |
| Product Certifications |
UL Listed
RINA
BV
CSA
GL
DNV
LROS (Lloyds register of shipping) |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Category |
22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule |
CS2 |
| GTIN |
00785901387480 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| Warranty |
18 months |
