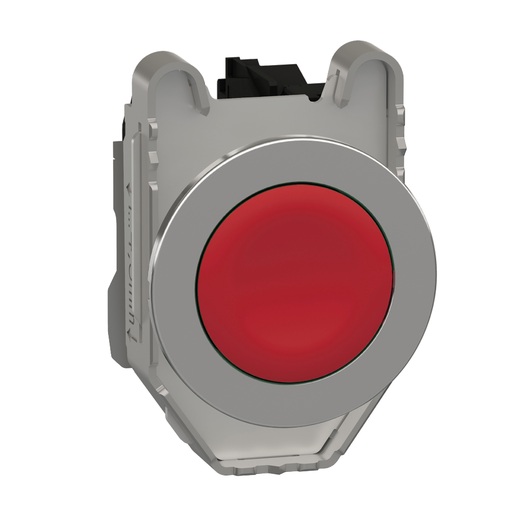

This flush mounted pushbutton is a part of the Harmony XB4 metallic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and red. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 116 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
Add to Quote CataloguePart Number | XB4FA42 |
---|---|
EAN | 3606489580117 |
Availability | N |
Lead Time | 23 |
ECCN | EAR99 |
HTs Code | 8538908180 |
Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | CS2 |
Depth | 2.17 inch |
Height | 1.85 inch |
Width | 1.44 inch |
Weight | 0.26 pound |
Range Of Product | Harmony XB4 |
---|---|
Product Or Component Type | Push-button |
Device Short Name | XB4F |
Product Compatibility | ZBYF... ZBZF32 ZBZF33 |
Bezel Material | Chromium plated metal |
Fixing Collar Material | Zamak |
Mounting Diameter | 1.20 in (30.5 mm) |
Sale Per Indivisible Qty | 1 |
Shape Of Signaling Unit Head | Round |
Type Of Operator | spring return |
Operator Profile | Red flush, unmarked |
Head Type | Built-in-flush |
Contacts Type And Composition | 1 NC |
Contact Operation | Slow-break |
Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 |
Height | 1.85 in (47 mm) |
Width | 1.44 in (36.6 mm) |
Depth | 2.17 in (55 mm) |
Terminals Description ISO n°1 | (13-14)NO |
Product Weight | 0.26 lb(US) (0.116 kg) |
Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Device Mounting | Built-in |
Fixing Mode | By screws |
Contacts Usage | Standard contacts |
Positive Opening | With NC contact EN/IEC 60947-5-1 appendix K |
Operating Travel | 0.06 in (1.5 mm) NC changing electrical state) 0.17 in (4.3 mm) total travel) |
Operating Force | 3.5 N NC changing electrical state |
Mechanical Durability | 10000000 cycles |
Tightening Torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
Shape Of Screw Head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
Contacts Material | Silver alloy (Ag/Ni) |
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Ith Cnvtl Free Air Therm Crrt | 10 A EN/IEC 60947-5-1 |
Ui Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
Uimp Rated Imp Wstd Voltage | 6 kV EN/IEC 60947-1 |
Ie Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
Electrical Reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
Device Presentation | Complete product |
Protective Treatment | TH |
Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
Overvoltage Category | Class I IEC 60536 |
IP Degree Of Protection | IP66 IEC 60529 IP67 IP69 IP69K |
Nema Degree Of Protection | NEMA 13 NEMA 4X |
IK Degree Of Protection | IK06 IEC 50102 |
Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-4 UL 508 EN/IEC 60947-1 JIS C8201-5-1 JIS C8201-1 |
Product Certifications | UL Listed CSA |
Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
