                  | Part Number | ZC1BM102 |
|---|---|
| Country of Origin | FR |
| UPC | 785901466987 |
| UPC11 | 78590146698 |
| EAN | 3389110322842 |
| Availability | N |
| Lead Time | 20 |
| ECCN | EAR99 |
| HTs Code | 8536904000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP2 |
| Return Indicator | No |
| Weight | 0.04 pound |
| Range Of Product | Harmony XB4 |
|---|---|

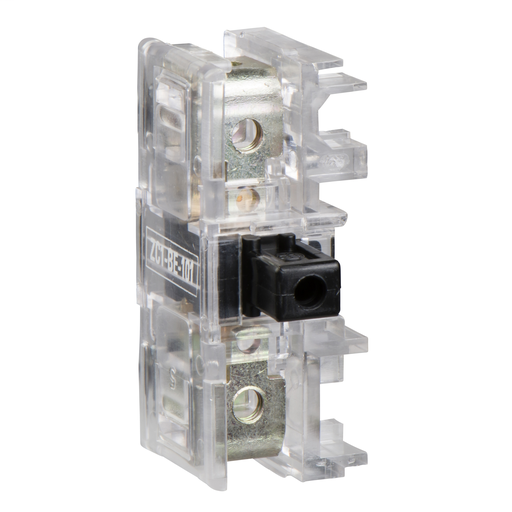

| Product Or Component Type | Contact block |
| Device Short Name | ZC1 |
| Sale Per Indivisible Qty | 1 |
| IP Degree Of Protection | IP00 IEC 60529 |
| Contacts Type And Composition | 1 NC |
| Contact Operation | Slow-break |
| Contacts Usage | Standard |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Cad Overall Width | 0.71 in (18 mm) |
| Cad Overall Height | 1.65 in (42 mm) |
| Cad Overall Depth | 0.83 in (21 mm) |
| Connections - Terminals | Screw clamp terminals |
| Product Weight | 0.04 lb(US) (0.02 kg) |
| Positive Opening | With |
| Operating Travel | 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel) |
| Operating Force | 2.3 N NO changing electrical state |
| Mechanical Durability | 1200000 cycles |
| Tightening Torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head | Slotted flat Ø 4 mm Cross pozidriv No 1 Slotted flat Ø 5.5 mm Cross Philips no 1 |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt | 10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage | 6 kV EN 60947-1 |
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability | Λ < 10exp(-7) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Mounting Of Block | Front mounting |
| Additional Information | Mounting on push-button collar |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 18073 - SPARE PARTS DISCOUNT I |
| Discount Schedule | CP2 |
| GTIN | 00785901466987 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
