| Range Of Product |
Harmony 9001K |
| Product Or Component Type |

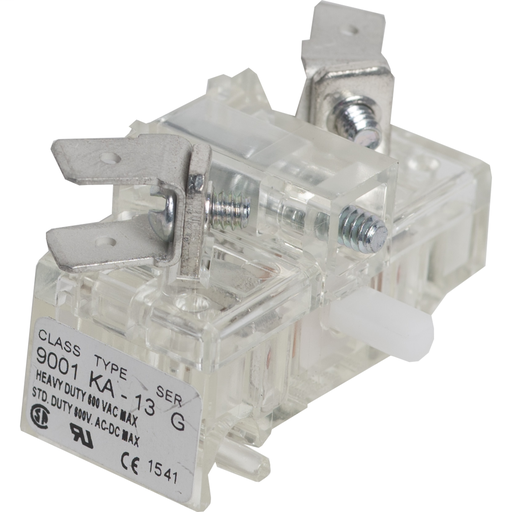

Contact block with protected terminals |
| Device Short Name |
9001K |
| Product Weight |
0.06 lb(US) (0.027 kg) |
| Contacts Type And Composition |
1 NC |
| Contact Operation |
Standard |
| Positive Opening |
With IEC 60947-5-1 |
| Connections - Terminals |
Quick-connect terminal strips |
| Contacts Material |
Silver alloy contacts |
| Short-Circuit Protection |
10 A cartridge fuse IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A |
| Ui Rated Insulation Voltage |
250 V 3)IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage |
2.5 kV IEC 60947-1 |
| Ie Rated Operational Current |
3 A 240 V, AC-15, A600-Q600 NEMA
0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Icm Rated Sc Making Cap |
12 kA 600 V AC-15, 7200 VA
15 kA 480 V AC-15, 7200 VA
30 kA 240 V AC-15, 7200 VA
60 kA 120 V AC-15, 7200 VA
0.1 kA 600 V DC-13, 7200 VA
0.27 kA 250 V DC-13, 7200 VA
0.55 kA 125 V DC-13 |
| Rated Breaking Capacity |
3 kA 240 V AC-15, 720 VA
6 kA 120 V AC-15, 720 VA
1.2 kA 600 V AC-15, 720 VA
1.5 kA 480 V AC-15, 720 VA
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
0.55 kA 125 V DC-13 |
| Protective Treatment |
TC |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class |
Class II IEC 61140 |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Standards |
UL 508
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C 852
JIS C 4520
EN/IEC 60947-5-4
EN/IEC 60947-1 |
| Product Certifications |
NEMA
UL 508 |
| Vibration Resistance |
7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
50 gn IEC 60068-2-27 |
| Category |
21434 - 9001 KA CONTACT BLOCKS |
| Discount Schedule |
CS1 |
| GTIN |
00785901732426 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
MX |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
