| Range Of Product |
Harmony 9001K |
| Product Or Component Type |

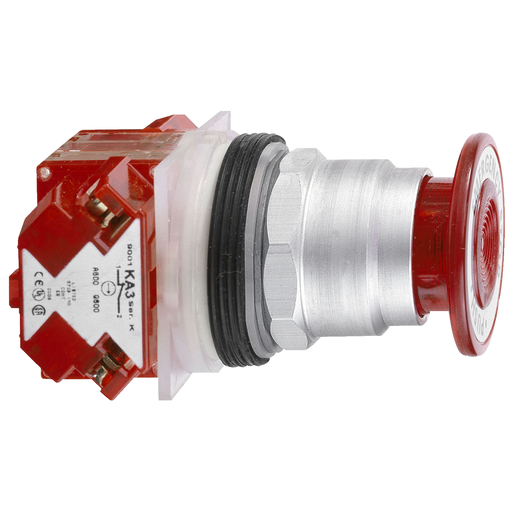

Mushroom head push-button |
| Device Short Name |
9001K |
| Type Of Operator |
push-pull |
| Operator Profile |
Red mushroom Ø 57 mm, unmarked |
| Bezel Material |
Chromium plated metal |
| Mounting Diameter |
1.18 in (30 mm) |
| Product Weight |
0.31 lb(US) (0.141 kg) |
| Operating Position |
Any position |
| Shape Of Signaling Unit Head |
Round |
| Head Material |
Plastic |
| Operator Add Information |
Screw-on plastic mushroom |
| Operator Pos Information |
2 positions |
| Contacts Type And Composition |
1 NC |
| Contact Operation |
Slow-break |
| Positive Opening |
With IEC 60947-5-2 |
| Mechanical Durability |
5000000 cycles |
| Connections - Terminals |
Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Tightening Torque |
7.08 lbf.in (0.8 N.m) EN/IEC 60947-1 |
| Shape Of Screw Head |
Cross slotted |
| Contacts Material |
Silver alloy contacts |
| Short-Circuit Protection |
10 A cartridge fuse EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A |
| Ui Rated Insulation Voltage |
250 V 3)EN/IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage |
2.5 kV EN/IEC 60947-1 |
| Ie Rated Operational Current |
3 A 240 V, AC-15, A600-Q600 NEMA
0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Icm Rated Sc Making Cap |
12 kA 600 V AC-15, 7200 VA
15 kA 480 V AC-15, 7200 VA
30 kA 240 V AC-15, 7200 VA
60 kA 120 V AC-15, 7200 VA
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
0.55 kA 125 V DC-13 |
| Rated Breaking Capacity |
3 kA 240 V AC-15, 720 VA
6 kA 120 V AC-15, 720 VA
1.2 kA 600 V AC-15, 720 VA
1.5 kA 480 V AC-15, 720 VA
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
0.55 kA 125 V DC-13 |
| Device Presentation |
Complete product |
| Protective Treatment |
TC |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| Overvoltage Category |
Class II IEC 61140 |
| IP Degree Of Protection |
IP66 IEC 60529 |
| Nema Degree Of Protection |
NEMA 1
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 6 |
| Standards |
EN/IEC 60947-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14 |
| Product Certifications |
UL 508
NEMA |
| Vibration Resistance |
7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
50 gn IEC 60068-2-27 |
| Category |
21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule |
CS1 |
| GTIN |
00785901159780 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
MX |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
