9001KR9R05H13
PUSH BUTTON 600VAC 10A 30MM T-K

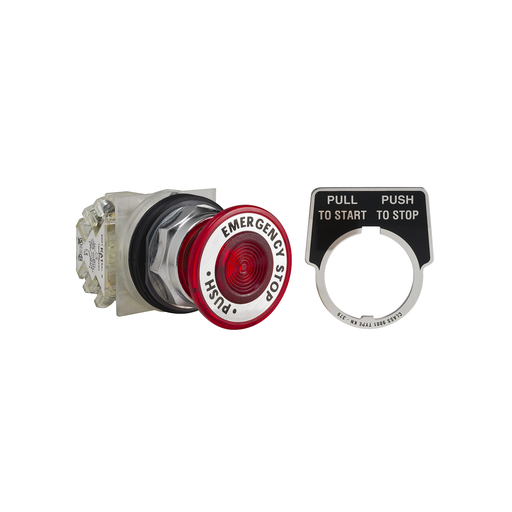

This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It uses screw-clamp terminals. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Add to Quote CatalogueSpecifications
| Part Number | 9001KR9R05H13 |
|---|---|
| Country of Origin | MX |
| UPC | 785901034308 |
| UPC11 | 78590103430 |
| EAN | 3389118040045 |
| Availability | S |
| Lead Time | 4 |
| UNSPSC | 39122216 |
| HTs Code | 8536509065 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Push-button |
| Device Short Name | K |
| Operator Add Information | Full guard in plastic |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Light Source | Without |
| Light Block Supply | Without supply |
| Ie Rated Operational Current | 10 A, AC-15 10 A, DC-13 |
| Contact Operation | Standard |
| Device Presentation | Complete product |
| Product Certifications | CSA LR 25490 class 3211 03 NEMA UL listed file E42259 CCN NKCR CE |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901034308 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
