| Range Of Product |
Harmony 9001K |
| Product Or Component Type |

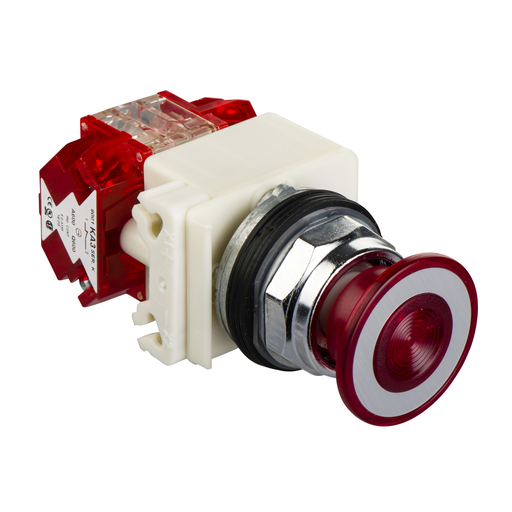

Illuminated mushroom head push-button |
| Device Short Name |
9001K |
| Type Of Operator |
push-pull |
| Operator Profile |
Red mushroom Ø 41 mm, unmarked |
| Light Block Supply |
Direct |
| Bezel Material |
Chromium plated metal |
| Mounting Diameter |
1.18 in (30 mm) |
| Cad Overall Width |
2.13 in (54 mm) |
| Cad Overall Height |
1.65 in (42 mm) |
| Cad Overall Depth |
4.06 in (103 mm) |
| Terminals Description ISO n°1 |
(11-12)NC_OL
(21-22)NC |
| Product Weight |
0.37 lb(US) (0.168 kg) |
| Operating Position |
Any position |
| Shape Of Signaling Unit Head |
Round |
| Operator Pos Information |
2 positions |
| Contacts Type And Composition |
2 NC |
| Contacts Type And Composition |
1 NC late-break
1 NC slow-break |
| Positive Opening |
With IEC 60947-5-2 |
| Mechanical Durability |
5000000 cycles |
| Connections - Terminals |
Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Tightening Torque |
7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape Of Screw Head |
Cross slotted |
| Contacts Material |
Silver alloy contacts |
| Short-Circuit Protection |
10 A cartridge fuse IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A |
| Ui Rated Insulation Voltage |
250 V 3)IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage |
2.5 kV IEC 60947-1 |
| Icm Rated Sc Making Cap |
12 kA 600 V AC-15, 7200 VA
15 kA 480 V AC-15, 7200 VA
30 kA 240 V AC-15, 7200 VA
60 kA 120 V AC-15, 7200 VA |
| Rated Breaking Capacity |
1.2 kA 600 V AC-15, 720 VA
1.5 kA 480 V AC-15, 720 VA
3 kA 240 V AC-15, 720 VA
6 kA 120 V AC-15, 720 VA
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
0.55 kA 125 V DC-13 |
| Light Source |
incandescent |
| Bulb Base |
BA 9s |
| [Us] Rated Supply Voltage |
24...28 V AC/DC |
| Operator Add Information |
Screw-on plastic mushroom |
| Device Presentation |
Complete product |
| Protective Treatment |
TC |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class |
Class II IEC 61140 |
| IP Degree Of Protection |
IP66 IEC 60529 |
| Nema Degree Of Protection |
NEMA 1
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4 |
| Standards |
JIS C 4520
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
CSA C22.2 No 14
UL 508
JIS C 852 |
| Product Certifications |
UL 508
NEMA |
| Vibration Resistance |
7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
50 gn IEC 60068-2-27 |
| Category |
21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule |
CS1 |
| GTIN |
00785901914648 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
MX |
