PUSH BUTTON 600VAC 10A 30MM T-K

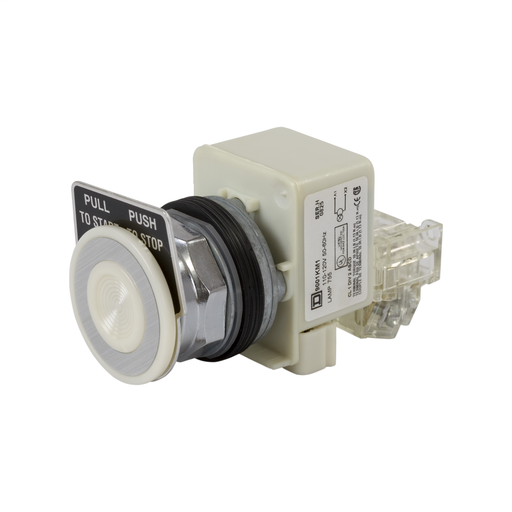

This Harmony 9001K, modular illuminated white push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head with 1 x NO + 1 x NC contacts. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9001KR9P1WH13 |
|---|---|
| Country of Origin | MX |
| UPC | 785901636823 |
| UPC11 | 78590163682 |
| EAN | 0785901636823 |
| Availability | N |
| Lead Time | 4 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8536509065 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Illuminated mushroom head push-button |
| Device Short Name | K |
| Type Of Operator | push-pull |
| Operator Profile | White mushroom Ø 41 mm |
| Operator Add Information | Screw-on plastic mushroom |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Light Source | incandescent |
| Light Source | Without |
| Bulb Base | BA 9s |
| Light Block Supply | Via integral transformer |
| [Us] Rated Supply Voltage | 110...120 V AC |
| Contacts Type And Composition | 1 C/O |
| Connections - Terminals | Screw clamp terminals |
| Operating Position | Any position |
| Ie Rated Operational Current | 10 A, AC-15 10 A, DC-13 |
| Contact Operation | Standard |
| Device Presentation | Complete product |
| Product Certifications | CSA LR 25490 class 3211 03 CE UL listed file E42259 CCN NKCR NEMA |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901636823 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
