PUSH BUTTON 600VAC 10A 30MM T-K

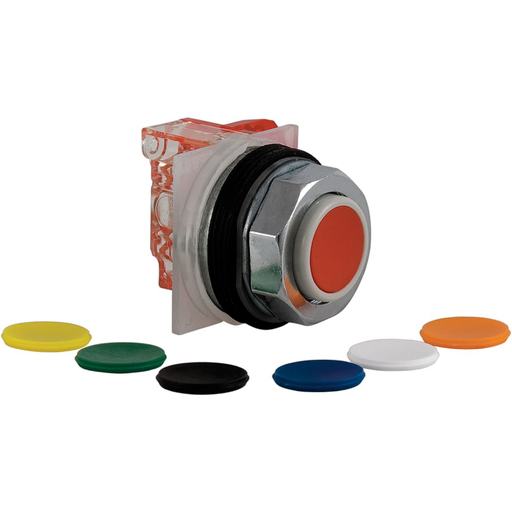

This Schneider Electric Harmony 9001K modular projecting push-button with set of 7 color caps has 2 positions, operates with spring return mechanism. It has 1 x NO + 1 x NC contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. It has a chromium-plated metal bezel. This projecting push-button with set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13).
Add to Quote CatalogueSpecifications
| Part Number | 9001KR3UH13 |
|---|---|
| Country of Origin | MX |
| UPC | 785901856474 |
| UPC11 | 78590185647 |
| EAN | 0785901856474 |
| Availability | S |
| Lead Time | 4 |
| UNSPSC | 39121326 |
| ECCN | EAR99 |
| HTs Code | 8536509031 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
| Weight | 0.28 pound |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Push-button |
| Device Short Name | 9001K |
| Type Of Operator | spring return |
| Operator Profile | 7 colours choice projecting, unmarked |
| Operator Add Information | Without guard |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Shape Of Signaling Unit Head | Octagonal |
| Contacts Type And Composition | 1 C/O |
| Connections - Terminals | Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Tightening Torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape Of Screw Head | Cross slotted |
| Mechanical Durability | 5000000 cycles |
| Operating Position | Any position |
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600-Q600 NEMA 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Ui Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage | 2.5 kV IEC 60947-1 |
| Contacts Material | Silver alloy contacts |
| Contact Operation | Standard |
| Positive Opening | Without |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt | 10 A |
| Icm Rated Sc Making Cap | 12 kA 600 V AC-15, 7200 VA 15 kA 480 V AC-15, 7200 VA 30 kA 240 V AC-15, 7200 VA 60 kA 120 V AC-15, 7200 VA 0.1 kA 600 V DC-13 0.27 kA 250 V DC-13 0.55 kA 125 V DC-13 |
| Rated Breaking Capacity | 3 kA 240 V AC-15, 720 VA 6 kA 120 V AC-15, 720 VA 1.2 kA 600 V AC-15, 720 VA 1.5 kA 480 V AC-15, 720 VA 0.1 kA 600 V DC-13 0.27 kA 250 V DC-13 0.55 kA 125 V DC-13 |
| Terminals Description ISO n°1 | (13-14-11-12)OF |
| Cad Overall Width | 1.89 in (48 mm) |
| Cad Overall Height | 1.77 in (45 mm) |
| Cad Overall Depth | 2.20 in (56 mm) |
| Product Weight | 0.28 lb(US) (0.128 kg) |
| Device Presentation | Complete product |
| Standards | EN/IEC 60947-5-4 EN/IEC 60947-1 JIS C 852 UL 508 JIS C 4520 EN/IEC 60947-5-1 CSA C22.2 No 14 |
| Product Certifications | UL 508 NEMA |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Vibration Resistance | 7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Electrical Shock Protect Class | Class II IEC 61140 |
| IP Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901856474 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
