PUSH BUTTON 600VAC 10A 30MM T-K

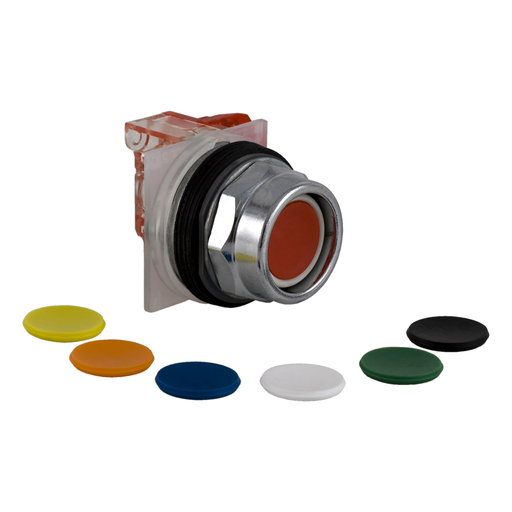

This Harmony 9001K, modular recessed push button with extended guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, and has 1 x NC contact. This recessed push button with extended guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9001KR2UH6 |
|---|---|
| Country of Origin | MX |
| UPC | 785901345909 |
| UPC11 | 78590134590 |
| EAN | 0785901345909 |
| Availability | N |
| Lead Time | 4 |
| UNSPSC | 39121326 |
| HTs Code | 8536509065 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Push-button |
| Device Short Name | K |
| Type Of Operator | spring return |
| Operator Profile | Green flush Yellow flush Black flush Red flush Orange flush Blue flush 7 colours choice recessed |
| Operator Add Information | Extended metallic guard |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Light Source | without |
| Light Source | Without |
| Light Block Supply | Without supply |
| Contacts Type And Composition | 1 NC |
| Connections - Terminals | Screw clamp terminals |
| Operating Position | Any position |
| Ie Rated Operational Current | 10 A, AC-15 10 A, DC-13 |
| Contact Operation | Standard |
| Device Presentation | Complete product |
| Product Certifications | CE NEMA CSA LR 25490 class 3211 03 UL listed file E42259 CCN NKCR |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901345909 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
