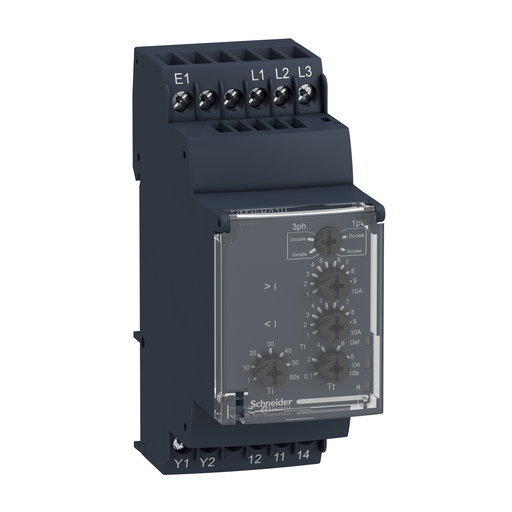

RM35BA10
Pump control relay RM35-BA – range 1..10 A
This Zelio RM35-BA control relay allows monitoring of pump control. This modular pump control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems: ideal for refurbishment of old installations without using a PLC.
Add to Quote CatalogueSpecifications
| Part Number | RM35BA10 |
|---|---|
| Country of Origin | ID |
| UPC | 785901637417 |
| UPC11 | 78590163741 |
| EAN | 3389119405195 |
| Availability | S |
| Lead Time | 25 |
| UNSPSC | 39122331 |
| ECCN | EAR99 |
| HTs Code | 8536490080 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP2 |
| Return Indicator | No |
| Width | 1.38 inch |
Characteristics
| Range Of Product | Zelio Control |
|---|---|
| Product Or Component Type | Modular measurement and control relays |
| Relay Type | Pump control relays |
| Product Specific Application | For 3-phase and single-phase pump |
| Relay Name | RM35BA |
| Relay Monitored Parameters | Overcurrent and undercurrent control Phase sequence on 3-phase supply Phase failure on 3-phase supply |
| Time Delay Type | Adjustable 1...60 s, +/- 10 % Ti on energisation Fixed 0.3 s reset on terminal Y2 Adjustable 0.1...10 s, +/- 10 % Tt on crossing the threshold |
| Switching Capacity In Va | 1250 VA |
| Minimum Switching Current | 10 mA 5 V DC |
| Maximum Switching Current | 5 A AC/DC |
| Power Consumption In Va | 5 VA AC |
| Measurement Range | 1...10 A AC |
| Utilisation Category | AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 |
| Reset Time | 2000 ms |
| Maximum Switching Voltage | 250 V AC/DC |
| [Un] Rated Nominal Voltage | 208...480 V AC 3 phase 230 V AC single phase |
| [Un] Rated Nominal Voltage | 208...480 V AC 3 phase 230 V AC 1 phase |
| Supply Voltage Limits | 183…528 V AC |
| Operating Voltage Tolerance | 15 % + 10 % Un |
| Resistance Across Terminals | 0.01 Ohm E1-L2 terminals |
| Width | 1.38 in (35 mm) |
| Output Contacts | 1 C/O |
| Nominal Output Current | 5 A |
| Measuring Cycle | 140 ms as true rms value |
| Delay At Power Up | 0.5 s |
| Hysteresis | 5 % threshold |
| Measurement Accuracy | +/- 10 % of the full scale value |
| Repeat Accuracy | +/- 1 % input and measurement circuit +/- 1 % time delay |
| Measurement Error | 1 % by volt over the whole range +/- 0.05 %/°C |
| Response Time | < 300 ms in the event of a fault) |
| Overload Input Current | 11 A permanent at 25 °C E1-L2 terminals 50 A non repetitive < 1 s at 25 °C E1-L2 terminals |
| Marking | CE : EMC 89/336/EEC CE : 73/23/EEC |
| Overvoltage Category | III IEC 60664-1 |
| Insulation Resistance | > 500 MOhm 500 V DC between supply and relay output 60255-5 > 500 MOhm 500 V DC between measurement and relay output 60664-1 > 1 MOhm 500 V DC between supply and measurement 60255-5 > 500 MOhm 500 V DC between supply and relay output 60664-1 > 500 MOhm 500 V DC between measurement and relay output 60255-5 > 1 MOhm 500 V DC between supply and measurement 60664-1 |
| Ui Rated Insulation Voltage | 400 V IEC 60664-1 |
| Supply Frequency | 50/60 Hz +/- 10 % |
| Operating Position | Any position |
| Connections - Terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Tightening Torque | 5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1 |
| Housing Material | Self-extinguishing plastic |
| Status Led | 1 LED Green power ON 1 LED Yellow fault 1 LED Yellow relay ON |
| Mounting Support | 35 mm symmetrical DIN rail EN/IEC 60715 |
| Electrical Durability | 100000 cycles |
| Mechanical Durability | 30000000 cycles |
| Operating Rate | <= 360 operations/hour full load |
| Immunity To Microbreaks | 500 ms |
| Electromagnetic Compatibility | Emission standard for industrial environments EN/IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 Immunity for industrial environments NF EN/IEC 61000-6-2 |
| Standards | EN/IEC 60255-6 |
| Product Certifications | C-tick CSA GOST UL GL |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
