| Range Of Product |
Modicon X80 |
| Product Or Component Type |

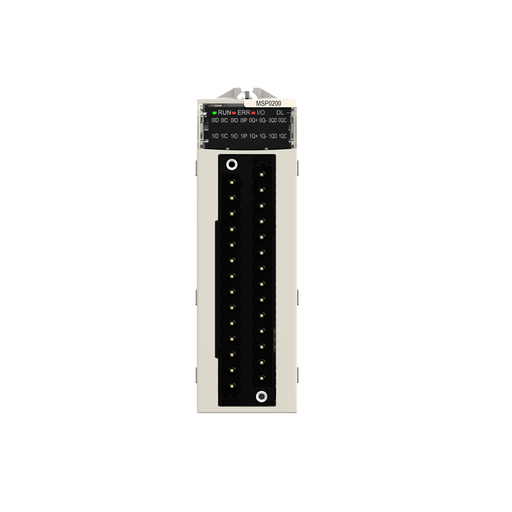

PTO module |
| Number Of Channels |
2 |
| Number Of Inputs |
4 |
| Discrete Input Type |
Current sink yes origin input IEC 61131-2 type 3
Current sink yes proximity input and limit switch input IEC 61131-2 type 3
Current sink or source counter in position input IEC 61131-2 type 3
Current sink or source drive ready, emergency input IEC 61131-2 type 3 |
| Input Compatibility |
2-wire/3-wire proximity sensor 19.2…30 V IEC 947-5-2 |
| Output Compatibility |
Signal converter (USIC)
RS422, 7 mA input
Source input, 5 V to 24 V |
| Output Frequency |
200 kHz <1.64 ft (0.5 m) with USIC and VW3M8210R05
100 kHz <16.40 ft (5 m) with the normal source input circuit
200 kHz <32.81 ft (10 m) with the RS422 compatible circuits |
| Operating Threshold |
> 12 V no error supply voltage
> 8 V error supply voltage |
| Input Voltage |
24 V DC |
| Input Current |
4.3 mA |
| Voltage State 1 Guaranteed |
>= 11 V |
| Current Consumption |
35 mA 24 V DC preactuator
150 mA 3.3 V DC typical
200 mA 3.3 V DC maximum |
| Current State 1 Guaranteed |
>= 2 mA |
| Voltage State 0 Guaranteed |
5 V |
| Current State 0 Guaranteed |
<= 1.5 mA |
| Response Time |
< 200 µs for position completed input and drive ready input
< 60 µs for origin input and proximity input |
| Number Of Outputs |
1 pulse output
2 auxiliary output |
| Practutr Vltg Dttion Thrhld |
< 8 V error preactuator voltage auxiliary output
< 8 V no error preactuator voltage auxiliary output
> 14 V error preactuator voltage pulse output
> 14 V no error preactuator voltage pulse output |
| Output Voltage |
24 V DC |
| Output Voltage Limits |
19...30 V |
| Discrete Output Current |
50 mA |
| Current Per Channel |
0.4 A |
| Leakage Current |
0.05 mA at state 0 |
| Ures Residual Voltage |
0.15 V at state 1 |
| Response Time On Output |
1.2...1.5 ms on appearance
1.2...1.5 ms on disappearance |
| Load Impedance Ohmic |
15000 Ohm |
| Output Overload Protection |
By current limiter and electronic circuit breaker |
| Output Short-Circuit Protct |
By current limiter and electronic circuit breaker |
| Reverse Polarity Protection |
By reverse mounting diode on output
Integrated on input |
| Insulation Between Channels |
No insulated |
| Insul Btwn Prim And Second |
1500 Vrms |
| Insulation Resistance |
> 10 MOhm |
| Local Signalling |
Module operating (RUN) 1 LED green)
External fault (I/O) 1 LED red)
Internal fault, module failure (ERR) 1 LED red)
Download (DL) 1 LED green)
Channel status (CH00) 8 LEDs green)
Channel status (CH01) 8 LEDs green) |
| Electrical Connection |
2 connectors 28 pins |
| Module Format |
Standard |
| Product Certifications |
CE
UL
CSA
RCM
EAC
Merchant Navy
ATEX zone 2/22
IECEx zone 2/22 |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| Derating Factor |
Without |
| Directives |
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2014/34/EU - ATEX directive
2012/19/EU - WEEE directive |
| Standards |
EN/IEC 61131-2
EN/IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5
EN/IEC 61850-3
EN/IEC 60079-0 |
| Environmental Characteristic |
Hazardous location class I division 2 |
| Category |
18160 - MODICON M340 |
| Discount Schedule |
PC34 |
| GTIN |
03595863998634 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
