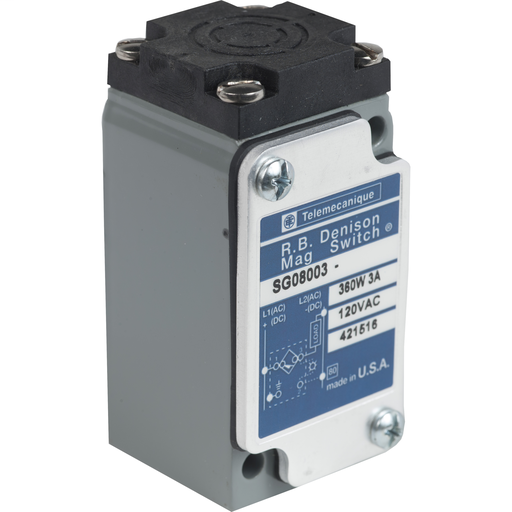

SG08003
PROXIMITY SENSOR – MAGNETIC ACTUATED SENSOR
Specifications
| Part Number | SG08003 |
|---|---|
| Country of Origin | US |
| UPC | 785901173465 |
| UPC11 | 78590117346 |
| EAN | 0785901173465 |
| Availability | S |
| Lead Time | 3 |
| UNSPSC | 39122230 |
| ECCN | EAR99 |
| HTs Code | 8536509055 |
| Prop 65 | This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | DS2 |
| Return Indicator | Yes |
Characteristics
| Product Or Component Type | Coded magnetic system |
|---|---|
| Material | Plastic |
| Electrical Connection | Pre-cabled |
| Ue Rated Operational Voltage | 24 V DC - 20...10 %) |
| Protection Type | Overload and short-circuit protection |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Category | 22487 - SENSORS, PROXIMITY, U S |
| Discount Schedule | DS2 |
| GTIN | 00785901173465 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | US |
| EU RoHs Directive | Not applicable, out of EU RoHS legal scope |
| Warranty | 18 months |
