ZBRRC
Programmable receiver – 4 PNP – 200 mA – 24 V DC – 2 pusbuttons – 6 LEDs

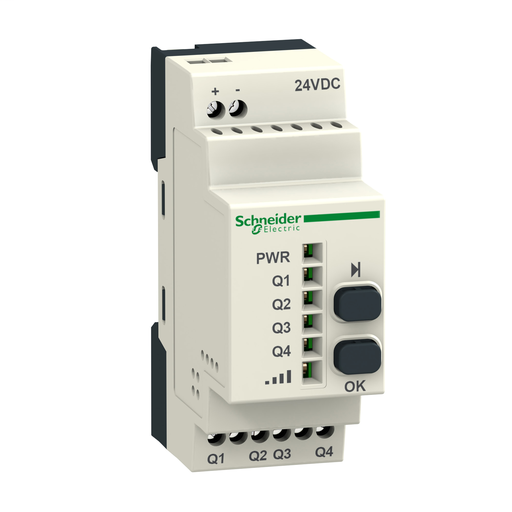

This configurable receiver is part of the ranges Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It is equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It features 4 PNP outputs, 200 mA /24 V and it can be supplied with 24V DC. It is easily combined with wireless and batteryless pushbuttons XB4R/XB5R and limit switches XCKW/XCMW. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. Its protection index is IP20. It weighs 130g and its dimensions are, 36mm wide, 108mm high, 75mm deep.
Add to Quote CatalogueSpecifications
| Part Number | ZBRRC |
|---|---|
| Country of Origin | ID |
| UPC | 785901879381 |
| UPC11 | 78590187938 |
| EAN | 3606480334719 |
| Availability | N |
| Lead Time | 24 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8517620090 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | Yes |
| Depth | 2.95 inch |
| Height | 4.25 inch |
| Width | 1.42 inch |
| Weight | 0.29 pound |
Characteristics
| Range Of Product | Harmony |
|---|---|
| Product Or Component Type | Programmable receiver |
| Device Short Name | ZBRRC |
| Product Specific Application | Interface to PLC |
| Function Of Module | Monostable |
| Reset Time | 2 ms time delay |
| Transmission Frequency | 2405 MHz |
| Emission Class | 5M00G7W |
| Antenna Type | Omnidirectional |
| Output Type | Transistor PNP |
| Output Contacts | 4 PNP |
| Time Delay Range | 0.5 s - 15...15 %) |
| Maximum Switching Current | 0.2 mA DC |
| Minimum Switching Current | 10 mA 5 V DC |
| [Us] Rated Supply Voltage | 24 V DC - 15...20 % |
| Voltage Drop | <2 V DC 2 A |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum Sensing Distance | 328.08 ft (100 m) in free field 82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure 131.23 ft (40 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Response Time | < 30 ms after transmitter clicks |
| Utilisation Category | DC-13 EN/IEC 60947-5-1 |
| Power Consumption In Va | 20 VA DC |
| Power Consumption In W | 20 W DC |
| Breaking Capacity | 4.8 W per output) |
| Short-Circuit Protection | 0.4 A fuse fast blow |
| Operating Position | Any position without derating |
| Electrical Connection | 1 conductor cable 0.00…0.00 in² (0.14…2.5 mm²) - AWG 26...AWG 14 - solid - without cable end IEC 60947-1 2 conductors cable 0.00…0.00 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - solid - without cable end IEC 60947-1 1 conductor cable 0.00…0.01 in² (0.14…4 mm²) - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1 2 conductors cable 0.00…0.00 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1 |
| Tightening Torque | 4.43…8.85 lbf.in (0.5…1 N.m) EN/IEC 60947-1 |
| Housing Material | Self-extinguishing plastic |
| Status Led | 1 LED Green power ON 1 LED green and yellow reception signal 4 LEDs Green relay ON |
| Mounting Support | 35 mm symmetrical DIN rail EN/IEC 60715 Mounting plate |
| Wstd Insulation Voltage Level | 1 kV 50 Hz EN/IEC 60947-5-1 |
| Uimp Rated Imp Wstd Voltage | 0.8 kV |
| Surge Withstand | 0.5 kV differential mode IEC 61000-4-5 1 kV common mode IEC 61000-4-5 |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna Gain | 0 dBi |
| Width | 1.42 in (36 mm) |
| Height | 4.25 in (108 mm) |
| Depth | 2.95 in (75 mm) |
| Product Weight | 0.29 lb(US) (0.13 kg) |
| Standards | EN/IEC 60947-5-1 |
| Radio Agreement | RSS SRRC ANATEL ARIB T66 FCC ICASA |
| Product Certifications | CCC CSA GOST C-tick UL |
| Marking | CE |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Relative Humidity | 90 % -4…131 °F (-20…55 °C), without condensation ETSI EN 300 440-1 |
| Vibration Resistance | +/- 7.5 mm 5…14 Hz)IEC 60068-2-6 2 gn 8…150 Hz)IEC 60068-2-6 |
| Shock Resistance | 10 gn 16 ms) 6000 shocks IEC 60068-2-27 |
