METSEEM4908A
PowerLogic EM4900 Multi-Circuit Meter – 08x3P circuits – Modbus RTU only

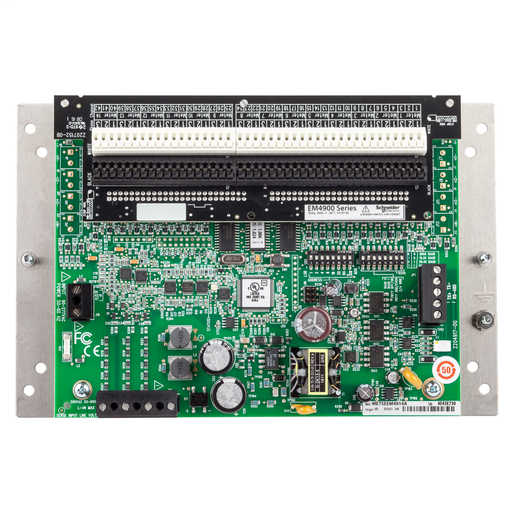

This multi-circuit power meter is part of the PowerLogic EM4900 Series. This device is a multi-circuit power meters that make it easy to add many revenue-grade metering points. Without having to purchase, mount, wire and commission individual energy meters. This version measures current, voltage, power and energy consumption of up to 8 3-phase circuits with one board configuration. It offers Modbus RTU communications. Measurement accuracy is plus or minus 1 % with LVCT0xxxx0S split core, or plus or minus 0.5 % with LVCT2xxxx0S split core. The printed board can be installed in a panel. Mechanical dimensions of the base board are 226 mm in width, 146 mm in height and 71 mm in depth.
Add to Quote CatalogueSpecifications
| Part Number | METSEEM4908A |
|---|---|
| Availability | N |
| Lead Time | 15 |
| UNSPSC | 83101808 |
| Prop 65 | This product can expose you to chemicals which are known to the State of California to cause Carcinogen and Reproductive harm.For more information go to www.p65warnings.ca.gov |
| Discount Schedule | PL1 |
| Return Indicator | No |
| Depth | 5.75 inch |
| Width | 11.34 inch |
| Weight | 3.31 pound |
Characteristics
| Range | PowerLogic |
|---|---|
| Product Or Component Type | Multi-circuit energy meter |
| Product Name | PowerLogic EM4900 |
| Device Short Name | EM4908 |
| Power Monitoring | Basic instrumentation |
| Energy Management | Billing analysis Sub billing and cost allocation |
| Device Application | Sub billing |
| Type Of Measurement | Current per phase, rms Current average Phase angle Active power total Active power per phase Apparent power total Apparent power per phase Power factor average Power factor per phase Active energy |
| Metering Type | Demand power P Demand current I1, I2, I3, peak demand current IM1, IM2, IM3 |
| [Us] Rated Supply Voltage | 100...277 V AC 50/60 Hz |
| Network Frequency | 50 Hz 60 Hz |
| Sampling Rate | 256 samples/cycle |
| Current Transformer Input | 24 solid core CT 0.333 V single pole 12 solid core CT 0.333 V single phase 8 solid core CT 0.333 V three phase 24 split core CT 0.333 V single pole 12 split core CT 0.333 V single phase 8 split core CT 0.333 V three phase |
| Measurement Voltage | 150…480 V AC 50/60 Hz between phases 90…277 V AC 50/60 Hz between phase and neutral |
| Measurement Accuracy | Power +/- 0.5 % of the measuring range Energy +/- 0.5 % of the measuring range Current +/- 0.5 % of the measuring range Voltage +/- 0.5 % of the measuring range |
| Communication Port Protocol | Modbus RTU 9600, 19200, 38400 bps even/odd or none - 2 or 4 wires |
| Communication Port Support | RS485 screw block terminal |
| Data Update Rate | 2 s Modbus) 14 s BACnet) 20 s SNMP) |
| Data Recording | Maximum of demand active power Maximum of instantaneous current Maximum of demand current |
| Communication Of Data | Low-low current alarm Low current alarm Under voltage alarm High current alarm Over voltage alarm High-high current alarm Total energy |
| Communication Service | Updating firmware |
| Mounting Mode | Wall mount |
| Installation Category | III |
| Pollution Degree | 2 |
| Ambient Air Temp For Op | 32…140 °F (0…60 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Standards | IEC 61010 UL 508 |
| Width | 11.34 in (288 mm) |
| Depth | 5.75 in (146 mm) |
| Product Weight | 3.31 lb(US) (1.5 kg) |
| Category | 09793 - PLOGIC BRANCH CIRCUIT BCPM & MCM |
| Discount Schedule | PL1 |
| Nbr. Of Units In Pkg. | 1 |
| EU RoHs Directive | Compliant |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
