| Range Of Product |
Modicon X80 |
| Product Or Component Type |

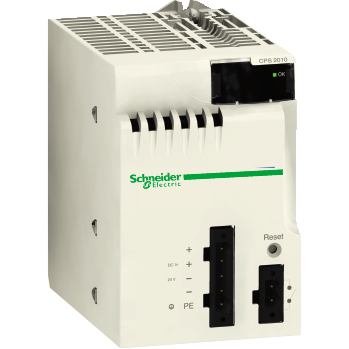

Power supply module |
| Backplane Compatibility |
Not compatible with BMEXBP..02 |
| Primary Voltage |
24 V isolated |
| Supply Circuit Type |
DC |
| Secondary Power |
16.8 W 24 V DC I/O module power supply and processor
8.3 W 3.3 V DC I/O module logic power supply |
| Primary Voltage Limit |
18...31.2 V |
| Input Current |
1 A 24 V |
| Inrush Current |
30 A 24 V |
| I┬▓T On Activation |
0.6 A².s 24 V |
| It On Activation |
0.15 A.s 24 V |
| Protection Type |
Internal fuse not accessible primary circuit
Overload protection secondary circuit, 24 V sensor power supply
Overvoltage protection secondary circuit, 24 V sensor power supply
Short-circuit protection secondary circuit, 24 V sensor power supply |
| Current At Secondary Voltage |
0.7 A 24 V DC I/O module power supply and processor
2.5 A 3.3 V DC I/O module logic power supply |
| Power Dissipation In W |
8.5 W |
| Status Led |
Rack voltage OK 1 LED Green) |
| Control Type |
RESET push-button cold restart |
| Electrical Connection |
1 connector 2 alarm relay
1 connector 5 line supply, protective earth, 24 V DC input sensor |
| Cable Distance Between Devices |
65.62 ft (20 m) power supply cable copper 0.00 in² (1.5 mm²)
98.43 ft (30 m) power supply cable copper 0.00 in² (2.5 mm²) |
| Insulation Resistance |
>= 10 MOhm primary/ground
>= 10 MOhm primary/secondary |
| Product Weight |
0.64 lb(US) (0.29 kg) |
| Immunity To Microbreaks |
1 ms |
| Dielectric Strength |
1500 V primary/ground
1500 V primary/secondary |
| Vibration Resistance |
3 gn |
| Shock Resistance |
30 gn |
| IP Degree Of Protection |
IP20 |
| Directives |
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive |
| Ambient Air Temp For Storage |
-40…185 °F (-40…85 °C) |
| Ambient Air Temp For Op |
32…140 °F (0…60 °C) |
| Relative Humidity |
5…95 % 131 °F (55 °C) without condensation |
| Protective Treatment |
TC |
| Operating Altitude |
0...6561.68 ft (0...2000 m)
2000...5000 m with derating factor |
| Category |
18160 - MODICON M340 |
| Discount Schedule |
PC34 |
| GTIN |
00785901476993 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
ID |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
