276XAXH-24D

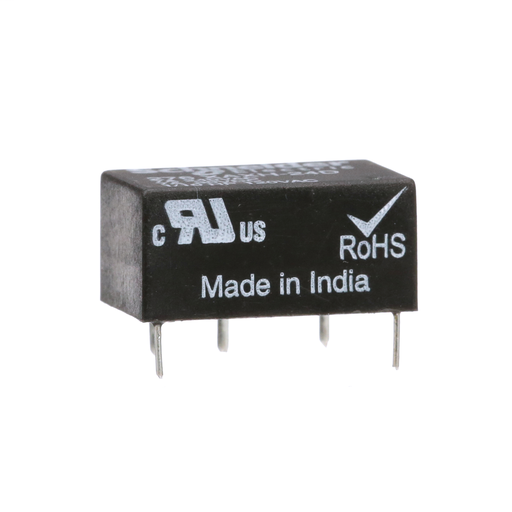

Power relay, Legacy, SPDT, 40A, 24 VDC, epoxy sealed
Specifications
| Part Number | 276XAXH-24D |
|---|---|
| UPC | 606480276217 |
| UPC11 | 60648027621 |
| EAN | 3606480276217 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Depth | 0.81 inch |
| Height | 0.39 inch |
| Width | 0.50 inch |
| Weight | 0.19 ounce |
Characteristics
| Product Type | Power relay |
|---|---|
| Switch Function | SPDT |
| Contact Composition | 1 NC + 1 NO |
| Input Current | 7 A |
| Contacts Material | Silver alloy contacts |
| Minimum Switching Current | 100 mA |
| Coil Resistance | 2880 Ohm |
| Input Voltage | 24 V DC |
| Drop-Out Voltage Threshold | >= 0.1 Uc DC |
| Ie Rated Operational Current | 7 A 240 V AC 7 A 30 V DC |
| Average Consumption In Va | 0.2 DC |
| Voltage Range | 0.8...1.1 Un DC |
| Motor Power Hp | 0.17 hp 120 V DC |
| Connections - Terminals | pins for printed circuit board |
| Protective Treatment | Epoxy powder coat |
| Electrical Insulation Class | Class E |
| Mounting | Printed circuit boards |
| Height | 0.39 in (10 mm) |
| Width | 0.50 in (12.7 mm) |
| Depth | 0.81 in (20.49 mm) |
| Product Weight | 0.19 oz (5.5 g) |
| Operating Time | 10 ms |
| Ambient Temperature Range - Operational | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Product Certifications | UL |
| Electrical Durability | 100000 cycles |
| Mechanical Durability | 5000000 cycles |
| Dielectric Strength | 2000 V AC between coil and contact 1000 V AC between contacts |
| Shock Resistance | 20 gn in operation |
| Vibration Resistance | 1.5 gn 10…55 Hz)in operation |
| GTIN | 03606480276217 |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
