| Product Range |
Legacy |

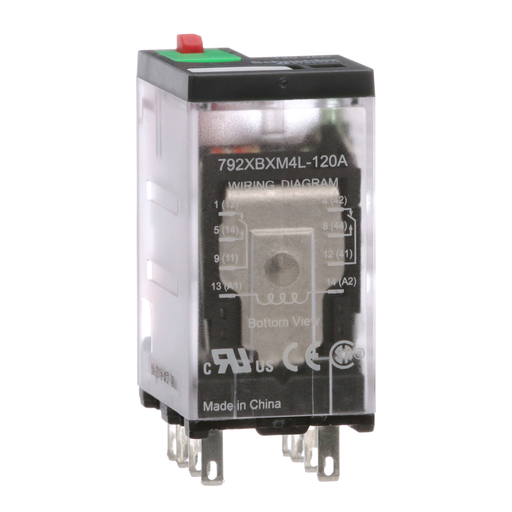

| Product Type |
Relay |
| Switch Function |
DPDT |
| Contact Composition |
2 NO + 2 NC |
| Input Current |
12 A |
| Contacts Material |
Silver with gold flashed contacts |
| Local Signalling |
LED
Flag |
| Control Type |
Lockable test button |
| Minimum Switching Current |
10 mA 17 V |
| Coil Resistance |
3630 Ohm |
| Input Voltage |
120 V AC |
| Drop-Out Voltage Threshold |
>= 0.15 Uc AC
>= 0.1 Uc DC |
| Ie Rated Operational Current |
12 A 277 V AC UL
12 A 120 V AC UL
12 A 30 V DC UL
12 A AC-1 NO)IEC
6 A AC-1 NC)IEC
12 A DC-1 NO)IEC
6 A DC-1 NC)IEC |
| Average Consumption In Va |
0.9 AC 60 Hz |
| Voltage Range |
0.8...1.1 Un AC/DC |
| Maximum Switching Voltage |
300 V UL
300 V CSA
250 V IEC |
| Motor Power Hp |
0.5 hp 120 V AC
1 hp 277 V AC |
| Connections - Terminals |
Faston connectors |
| Mounting |
Panel
DIN rail |
| Height |
1.57 in (40 mm) |
| Width |
0.83 in (21 mm) |
| Depth |
1.07 in (27.2 mm) |
| Product Weight |
1.31 oz (37 g) |
| Operating Time |
25 ms
20 ms at maximum rated voltage |
| Ambient Temperature Range - Operational |
-40…131 °F (-40…55 °C) |
| Ambient Air Temp For Storage |
-40…185 °F (-40…85 °C) |
| Product Certifications |
UL
CSA
CE |
| Electrical Durability |
100000 cycles resistive |
| Mechanical Durability |
10000000 cycles |
| Dielectric Strength |
2000 V AC between coil and contact
2000 V AC between poles
1300 V AC between contacts |
| Shock Resistance |
10 gn in operation
30 gn not operating |
| Vibration Resistance |
3 gn 35…150 Hz)operating
+/- 1 mm 10…35 Hz)operating
5 gn 35…150 Hz)not operating
+/- 1 mm 10…35 Hz)not operating |
| Surge Withstand Duration |
1.2/50 µs |
| GTIN |
03606480781209 |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
