792XDX3C-24D

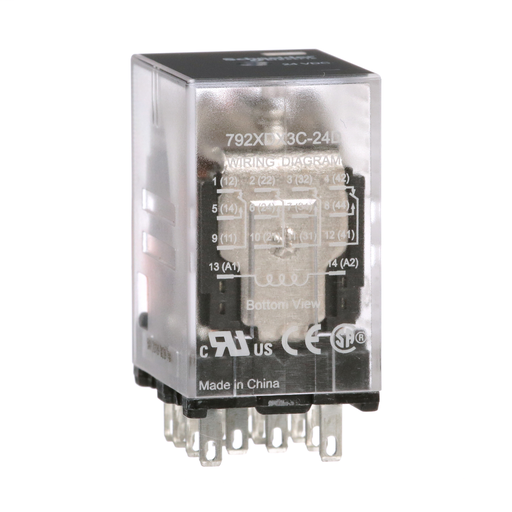

Power relay, Legacy, 4PDT, 3A, 24 VDC, low level bifurcated contacts, clear cover
Specifications
| Part Number | 792XDX3C-24D |
|---|---|
| UPC | 606480781667 |
| UPC11 | 60648078166 |
| EAN | 3606480781667 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Depth | 1.07 inch |
| Height | 1.37 inch |
| Width | 0.83 inch |
| Weight | 1.31 ounce |
Characteristics
| Product Range | Legacy |
|---|---|
| Product Type | Relay |
| Switch Function | 4PDT |
| Contact Composition | 4 NO + 4 NC |
| Input Current | 3 A |
| Contacts Material | Gold plated bifurcated silver |
| Local Signalling | Flag |
| Minimum Switching Current | 3 mA 5 V |
| Coil Resistance | 640 Ohm |
| Input Voltage | 24 V DC |
| Drop-Out Voltage Threshold | >= 0.15 Uc AC >= 0.1 Uc DC |
| Ie Rated Operational Current | 3 A 240/277 V AC UL 3 A 120 V AC UL 3 A 30 V DC UL 2 A AC-1 NO)IEC 2 A DC-1 NO)IEC 1 A AC-1 NC)IEC 1 A DC-1 NC)IEC |
| Average Consumption In Va | 0.8 DC |
| Voltage Range | 0.8...1.1 Un AC/DC |
| Maximum Switching Voltage | 300 V UL 300 V CSA 250 V IEC |
| Motor Power Hp | 0.0625 hp 120 V AC |
| Connections - Terminals | Faston connectors |
| Mounting | Panel DIN rail |
| Height | 1.37 in (34.8 mm) |
| Width | 0.83 in (21 mm) |
| Depth | 1.07 in (27.2 mm) |
| Product Weight | 1.31 oz (37 g) |
| Operating Time | 25 ms 20 ms at maximum rated voltage |
| Ambient Temperature Range - Operational | -40…131 °F (-40…55 °C) |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Product Certifications | UL CSA CE |
| Electrical Durability | 100000 cycles resistive |
| Mechanical Durability | 10000000 cycles |
| Dielectric Strength | 2000 V AC between coil and contact 2000 V AC between poles 1300 V AC between contacts |
| Shock Resistance | 10 gn in operation 30 gn not operating |
| Vibration Resistance | 3 gn 35…150 Hz)operating +/- 1 mm 10…35 Hz)operating 5 gn 35…150 Hz)not operating +/- 1 mm 10…35 Hz)not operating |
| Surge Withstand Duration | 1.2/50 µs |
| GTIN | 03606480781667 |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
