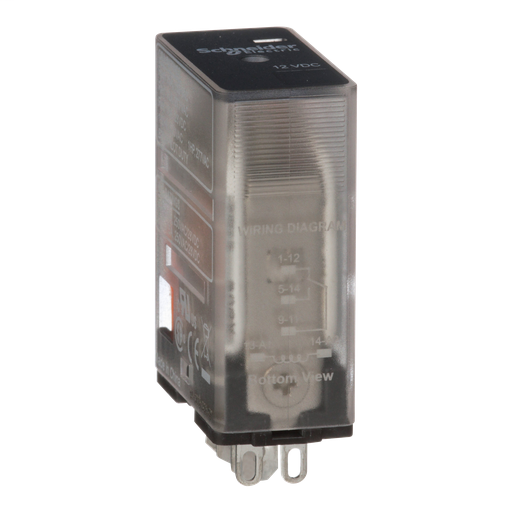

781XAXRC-12D
Power relay, Legacy, 15A, SPDT, 12 VDC, clear cover
Specifications
| Part Number | 781XAXRC-12D |
|---|---|
| UPC | 606480780431 |
| UPC11 | 60648078043 |
| EAN | 3606480780431 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Depth | 1.07 inch |
| Height | 1.39 inch |
| Width | 0.55 inch |
| Weight | 0.92 ounce |
Characteristics
| Product Range | Legacy |
|---|---|
| Product Type | Power relay |
| Switch Function | SPDT |
| Contact Composition | 1 NC + 1 NO |
| Input Current | 15 A |
| Contacts Material | Silver alloy, gold flashed |
| Local Signalling | Flag |
| Minimum Switching Current | 10 mA 17 V |
| Coil Resistance | 115 Ohm |
| Input Voltage | 12 V DC |
| Drop-Out Voltage Threshold | >= 0.15 Uc AC >= 0.1 Uc DC |
| Ie Rated Operational Current | 15 A 120...277 V AC UL 15 A 28 V DC UL 15 A 120/150 V AC CSA 10 A 151/277 V AC CSA 15 A 28 V DC CSA 15 A 250 V AC NO)IEC 15 A 28 V DC NO)IEC 7.55 A 250 V AC NC)IEC 7.55 A 28 V DC NC)IEC |
| Average Consumption In Va | 1.6 AC 60 Hz 1.1 DC |
| Voltage Range | 0.8...1.1 Un AC/DC |
| Maximum Switching Voltage | 300 V AC UL 300 V AC CSA 250 V AC IEC |
| Motor Power Hp | 0.5 hp 120 V AC 50...60 Hz 1 hp 277 V AC 50...60 Hz |
| Connections - Terminals | Faston terminals |
| Mounting | Socket |
| Height | 1.39 in (35.3 mm) |
| Width | 0.55 in (14 mm) |
| Depth | 1.07 in (27.3 mm) |
| Product Weight | 0.92 oz (26 g) |
| Operating Time | 25 ms 20 ms |
| Ambient Temperature Range - Operational | -40…131 °F (-40…55 °C) |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Product Certifications | UL CE CSA |
| Electrical Durability | 100000 cycles resistive |
| Mechanical Durability | 10000000 cycles |
| Dielectric Strength | 2000 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts |
| Shock Resistance | 15 gn in operation |
| Vibration Resistance | +/-1 mm 10…35 Hz) 3 gn 35…150 Hz) |
| GTIN | 03606480780431 |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
