Part Number | 782XBXC-240A |
---|---|
UPC | 606480280146 |
UPC11 | 60648028014 |
EAN | 3606480280146 |
Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Depth | 1.07 inch |
Height | 1.37 inch |
Width | 0.83 inch |
Weight | 1.27 ounce |
Product Range | Legacy |
---|---|

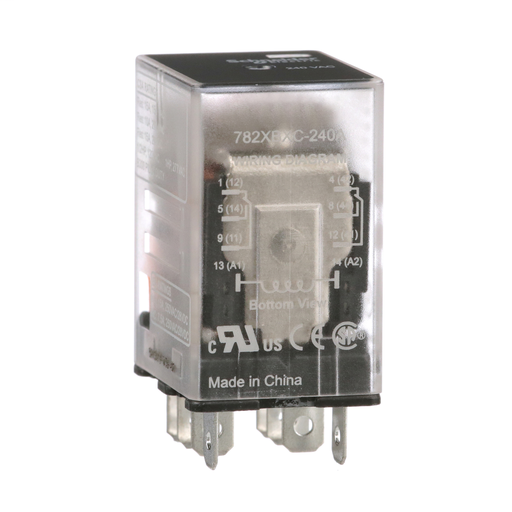

Product Type | Power relay |
Switch Function | DPDT |
Contact Composition | 2 NO + 2 NC |
Input Current | 15 A |
Contacts Material | Silver alloy, gold flashed |
Local Signalling | Flag |
Minimum Switching Current | 10 mA 17 V |
Coil Resistance | 17720 Ohm |
Input Voltage | 240 V AC |
Drop-Out Voltage Threshold | >= 0.15 Uc AC >= 0.1 Uc DC |
Ie Rated Operational Current | 15 A 120...277 V AC UL 15 A 28 V DC UL 15 A 120/150 V AC CSA 10 A 151/277 V AC CSA 15 A 28 V DC CSA 15 A 250 V AC NO)IEC 15 A 28 V DC NO)IEC 7.55 A 250 V AC NC)IEC 7.55 A 28 V DC NC)IEC |
Average Consumption In Va | 1.1 AC 60 Hz 0.85 DC |
Voltage Range | 0.8...1.1 Un AC/DC |
Maximum Switching Voltage | 300 V AC UL 300 V AC CSA 250 V AC IEC |
Motor Power Hp | 0.5 hp 120 V AC 50/60 Hz 1 hp 277 V AC 50/60 Hz |
Connections - Terminals | Faston terminals |
Mounting | Socket |
Height | 1.37 in (34.8 mm) |
Width | 0.83 in (21 mm) |
Depth | 1.07 in (27.3 mm) |
Product Weight | 1.27 oz (36 g) |
Operating Time | 20 ms operating 20 ms not operating |
Ambient Temperature Range - Operational | -40…131 °F (-40…55 °C) |
Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
Product Certifications | UL CE CSA |
Electrical Durability | 100000 cycles resistive |
Mechanical Durability | 10000000 cycles |
Dielectric Strength | 2000 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts |
Shock Resistance | 15 gn in operation |
Vibration Resistance | +/- 1 mm 10…35 Hz) 3 gn 35…150 Hz) |
GTIN | 03606480280146 |
Green Premium Status | Green Premium product |
REACh Free Of SVHC | Yes |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Toxic Heavy Metal Free | Yes |
Mercury Free | Yes |
