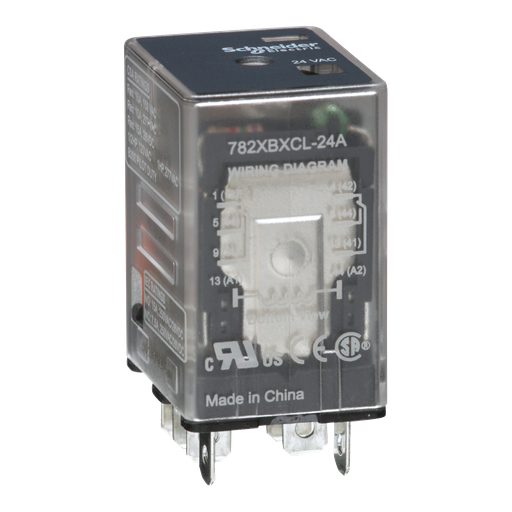

Power relay, Legacy, 15A, DPDT, 24 VAC, clear cover with LED indicator
782XBXCL-24A
Power relay, Legacy, 15A, DPDT, 24 VAC, clear cover with LED indicator
Specifications
Part Number 782XBXCL-24A
UPC 606480280214
UPC11 60648028021
EAN 3606480280214
Prop 65 This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant Yes
Depth 1.07 inch
Height 1.37 inch
Width 0.83 inch
Weight 1.27 ounce
Characteristics
Product Range Legacy
Product Type Power relay
Switch Function DPDT
Contact Composition 2 NO + 2 NC
Input Current 15 A
Contacts Material Silver alloy, gold flashed
Local Signalling LED Flag
Minimum Switching Current 10 mA 17 V
Coil Resistance 177 Ohm
Input Voltage 24 V AC
Drop-Out Voltage Threshold >= 0.15 Uc AC >= 0.1 Uc DC
Ie Rated Operational Current 15 A 120...277 V AC UL 15 A 28 V DC UL 15 A 120/150 V AC CSA 10 A 151/277 V AC CSA 15 A 28 V DC CSA 15 A 250 V AC NO)IEC 15 A 28 V DC NO)IEC 7.55 A 250 V AC NC)IEC 7.55 A 28 V DC NC)IEC
Average Consumption In Va 1.4 AC 60 Hz 1.15 DC
Voltage Range 0.8...1.1 Un AC/DC
Maximum Switching Voltage 300 V AC UL 300 V AC CSA 250 V AC IEC
Motor Power Hp 0.5 hp 120 V AC 50/60 Hz 1 hp 277 V AC 50/60 Hz
Connections - Terminals Faston terminals
Mounting Socket
Height 1.37 in (34.8 mm)
Width 0.83 in (21 mm)
Depth 1.07 in (27.3 mm)
Product Weight 1.27 oz (36 g)
Operating Time 20 ms operating 20 ms not operating
Ambient Temperature Range - Operational -40…131 °F (-40…55 °C)
Ambient Air Temp For Storage -40…185 °F (-40…85 °C)
Product Certifications UL CE CSA
Electrical Durability 100000 cycles resistive
Mechanical Durability 10000000 cycles
Dielectric Strength 2000 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts
Shock Resistance 15 gn in operation
Vibration Resistance +/- 1 mm 10…35 Hz) 3 gn 35…150 Hz)
GTIN 03606480280214
Green Premium Status Green Premium product
REACh Free Of SVHC Yes
EU RoHs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free Yes
Mercury Free Yes
WEEE The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
