| Product Range |
Legacy |
| Product Type |

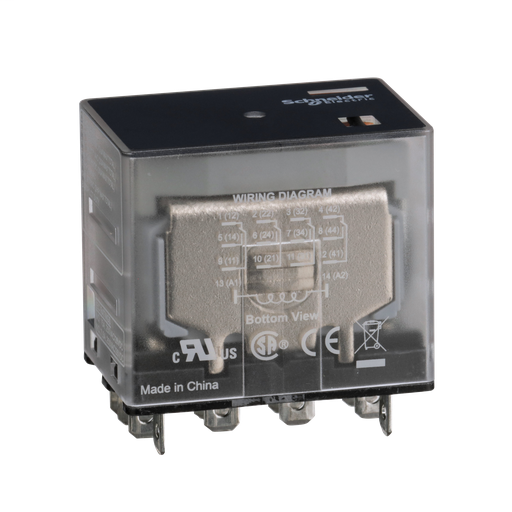

Power relay |
| Switch Function |
4PDT |
| Contact Composition |
4 NO + 4 NC |
| Input Current |
15 A |
| Contacts Material |
Silver alloy, gold flashed |
| Local Signalling |
LED
Flag |
| Minimum Switching Current |
10 mA 17 V |
| Coil Resistance |
2100 Ohm |
| Input Voltage |
120 V AC |
| Drop-Out Voltage Threshold |
>= 0.15 Uc AC
>= 0.1 Uc DC |
| Ie Rated Operational Current |
15 A 120...277 V AC UL
15 A 28 V DC UL
15 A 120/150 V AC CSA
10 A 151/277 V AC CSA
15 A 28 V DC CSA
15 A 250 V AC NO)IEC
15 A 28 V DC NO)IEC
7.55 A 250 V AC NC)IEC
7.55 A 28 V DC NC)IEC |
| Average Consumption In Va |
2.85 AC 60 Hz
1.95 DC |
| Voltage Range |
0.8...1.1 Un AC/DC |
| Maximum Switching Voltage |
300 V AC UL
300 V AC CSA
250 V AC IEC |
| Motor Power Hp |
0.5 hp 120 V AC 50/60 Hz
1 hp 277 V AC 50/60 Hz |
| Connections - Terminals |
Faston terminals |
| Mounting |
Socket |
| Height |
1.37 in (34.9 mm) |
| Width |
1.60 in (40.6 mm) |
| Depth |
1.07 in (27.3 mm) |
| Product Weight |
2.82 oz (80 g) |
| Operating Time |
20 ms operating
20 ms not operating |
| Ambient Temperature Range - Operational |
-40…131 °F (-40…55 °C) |
| Ambient Air Temp For Storage |
-40…185 °F (-40…85 °C) |
| Product Certifications |
UL
CE
CSA |
| Electrical Durability |
100000 cycles resistive |
| Mechanical Durability |
10000000 cycles |
| Dielectric Strength |
2000 V AC between coil and contact
2000 V AC between poles
1500 V AC between contacts |
| Shock Resistance |
15 gn in operation |
| Vibration Resistance |
+/- 1 mm 10…35 Hz)
3 gn 35…150 Hz) |
| GTIN |
03606480781018 |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
