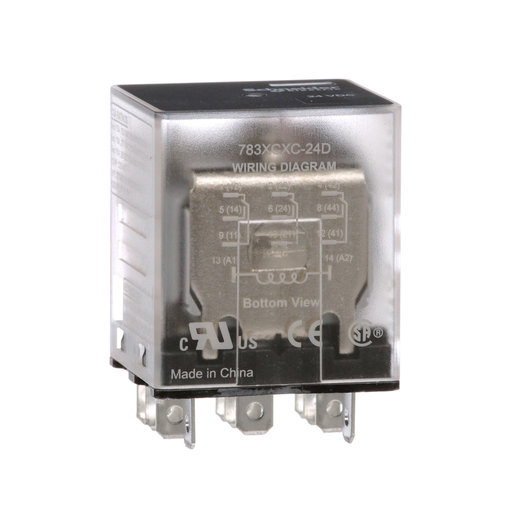

Power relay, Legacy, 15A, 3PDT, 24 VDC, clear cover
783XCXC-24D
Power relay, Legacy, 15A, 3PDT, 24 VDC, clear cover
Specifications
Part Number 783XCXC-24D
UPC 606480281143
UPC11 60648028114
EAN 3606480281143
Prop 65 This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant Yes
Depth 1.07 inch
Height 1.37 inch
Width 1.20 inch
Weight 1.90 ounce
Characteristics
Product Type Power relay
Switch Function 3PDT
Contact Composition 3 NO + 3 NC
Input Current 15 A
Contacts Material Silver alloy, gold flashed
Local Signalling Flag
Minimum Switching Current 10 mA 17 V
Coil Resistance 320 Ohm
Input Voltage 24 V DC
Drop-Out Voltage Threshold >= 0.15 Uc AC >= 0.1 Uc DC
Ie Rated Operational Current 15 A 120...277 V AC UL 15 A 28 V DC UL 15 A 120/150 V AC CSA 10 A 151/277 V AC CSA 15 A 28 V DC CSA 15 A 250 V AC NO)IEC 15 A 28 V DC NO)IEC 7.55 A 250 V AC NC)IEC 7.55 A 28 V DC NC)IEC
Average Consumption In Va 1.7 AC 60 Hz 1.5 DC
Voltage Range 0.8...1.1 Un AC/DC
Maximum Switching Voltage 300 V AC UL 300 V AC CSA 250 V AC IEC
Motor Power Hp 0.5 hp 120 V AC 50/60 Hz 1 hp 277 V AC 50/60 Hz
Connections - Terminals Faston terminals
Mounting Socket
Height 1.37 in (34.8 mm)
Width 1.20 in (30.6 mm)
Depth 1.07 in (27.3 mm)
Product Weight 1.90 oz (54 g)
Operating Time 20 ms operating 20 ms not operating
Ambient Temperature Range - Operational -40…131 °F (-40…55 °C)
Ambient Air Temp For Storage -40…185 °F (-40…85 °C)
Product Certifications UL CE CSA
Electrical Durability 100000 cycles resistive
Mechanical Durability 10000000 cycles
Dielectric Strength 2000 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts
Shock Resistance 15 gn in operation
Vibration Resistance +/- 1 mm 10…35 Hz) 3 gn 35…150 Hz)
GTIN 03606480281143
Green Premium Status Green Premium product
REACh Free Of SVHC Yes
EU RoHs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free Yes
Mercury Free Yes
WEEE The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
